Electron.steer. column adj./add-on parts for BMW 7 Series G11 LCI 730i (2020)

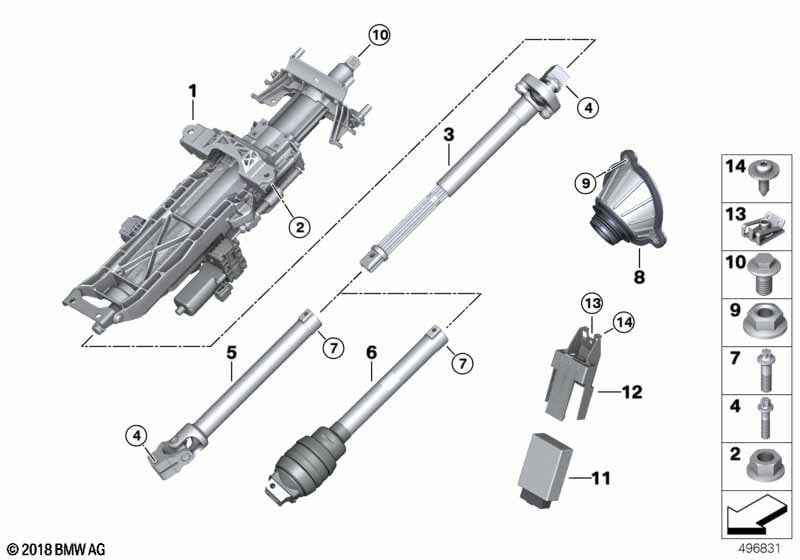

This Electron.steer. column adj./add-on parts technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steering wheel column adjustment,electr. | 1 | 32306894879 | Shop at ECS Tuning | ||||||
| 02 | Hex nut | M8-ZNS3 | 4 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 03 | Lower joint assy | 1 | 32306862031 | Shop at ECS Tuning | ||||||
| 04 | Torx bolt | M8X33 | 2 | 32306778609 | $0.67 | Shop at ECS Tuning | ||||
| 05 | Swivel joint | 1 | 32306862041 | Shop at ECS Tuning | ||||||
| 07 | Torx bolt | M8X33 | 1 | 32306778609 | $0.67 | Shop at ECS Tuning | ||||
| 08 | Steering shaft sleeve | 1 | 32306862081 | Shop at ECS Tuning | ||||||
| 09 | Hex nut | M6-8-SC-ZNNIV S | 3 | 34506859776 | Shop at ECS Tuning | |||||
| 10 | Torx screw, micro-encapsulated | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| 12 | Steering column control unit bracket | 1 | 32306891640 | Shop at ECS Tuning | ||||||
| 13 | C-clip sheet metal nut | 1 | 07149319414 | Shop at ECS Tuning | ||||||
| 14 | Combi. fillister head self-tapping screw | 1 | 07149323312 | NoS | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
