Steering lock/ignition switch for BMW 3 Series E36 M3 (1997)

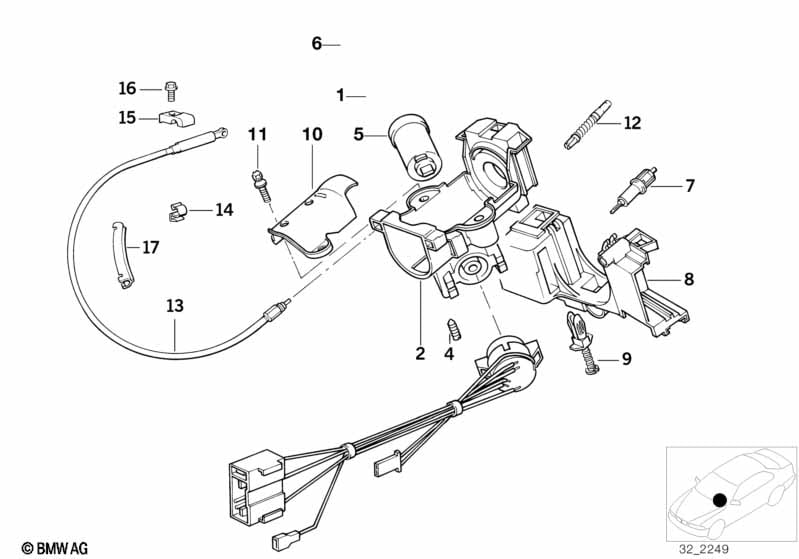

This Steering lock/ignition switch technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice! Before ordering keys, central locking systems, control units (EWS immobilizer/CAS), etc., it is vital to ensure that the customer and/or vehicle owner present proof of authorization in the form of original vehicle documents and an official photo ID! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. |
|||||||||
| For vehicles with Electronic immobilizer |
=Yes |
|||||||||
| 01 | O-ring | 1 | 32321094182 | $0.68 | Shop at ECS Tuning | |||||
| 02 | Steering lock | 1 | 01/1995 | 06/1998 | 32321093265 | $149.42 | Shop at ECS Tuning | |||
| 03 | Ignition switch | 1 | 01/1995 | 61328360922 | $80.19 | Shop at ECS Tuning | ||||
| 04 | Grub screw | 2 | 32301159449 | $2.57 | Shop at ECS Tuning | |||||
| ETA/Liefertermin nicht vor 27 Juni 2025 | ||||||||||
| 05 | Lock (with key code) | 1 | 01/1995 | 06/1998 | 32321092780 | $100.78 | Shop at ECS Tuning | |||
| 06 | Ring antenna | EWS-2 | 1 | 04/1995 | 61356965426 | Shop at ECS Tuning | ||||
| For vehicles with M technic steering wheel airbag |
=Yes |
|||||||||
| 07 | Carbon pin | LHD | 1 | 32311158475 | $16.70 | Shop at ECS Tuning | ||||
| 08 | Steering column switch bracket | 1 | 09/1994 | 32311162088 | $4.00 | Shop at ECS Tuning | ||||
| For vehicles with M technic steering wheel airbag |
=Yes |
|||||||||
| 08 | Steering column switch bracket | 1 | 32311159147 | $4.62 | Shop at ECS Tuning | |||||
| 09 | Clamp | 1 | 51131885399 | $0.35 | Shop at ECS Tuning | |||||
| 10 | Pipe clamp | 1 | 01/1995 | 32311093168 | $8.08 | Shop at ECS Tuning | ||||
| 11 | Fracture bolt | 2 | 32311157967 | $1.64 | Shop at ECS Tuning | |||||
| For vehicles with Airbag |
=Yes |
|||||||||
| 12 | Locking pin | 1 | 32341156341 | $1.88 | Shop at ECS Tuning | |||||
