Leather steering wheel for BMW 2 Series F45 Active Tourer LCI 218dX (2021)

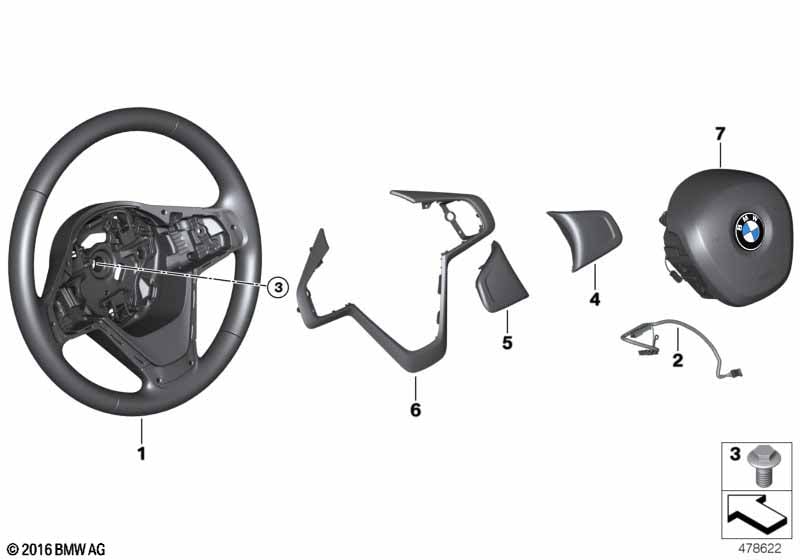

This Leather steering wheel technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 218dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | BMW recommends the Security Kit TNR 2 464 228 as theft protection. For vehicles with Sports leather steering wheel and Sport automatic transmission and M leather steering wheel |
S255A=No S2TBA=No S710A=No |
||||||||
| 01 | Leather steering wheel | 1 | 32306860356 | Shop at ECS Tuning | ||||||
| For vehicles with Multifunction f steering wheel |
S249A=Yes |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32306871236 | Shop at ECS Tuning | ||||||
| For vehicles with Multifunction f steering wheel |
S249A=No |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32306871237 | Shop at ECS Tuning | ||||||
| 03 | Torx screw, micro-encapsulated | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| 04 | Blanking plate, right | 1 | 32306860354 | Shop at ECS Tuning | ||||||
| 05 | Blanking plate, left | 1 | 32306860353 | Shop at ECS Tuning | ||||||
| 06 | Decor trim cover, steering wheel | 1 | 32306874864 | Shop at ECS Tuning | ||||||
| 07 | Airbag module, driver's side | 1 | 32306992381 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission or Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 07 | Airbag module, driver's side | 1 | 32306992385 | Shop at ECS Tuning | ||||||
