Leather steering wheel for BMW 3 Series G20 Sedan 330i (2022)

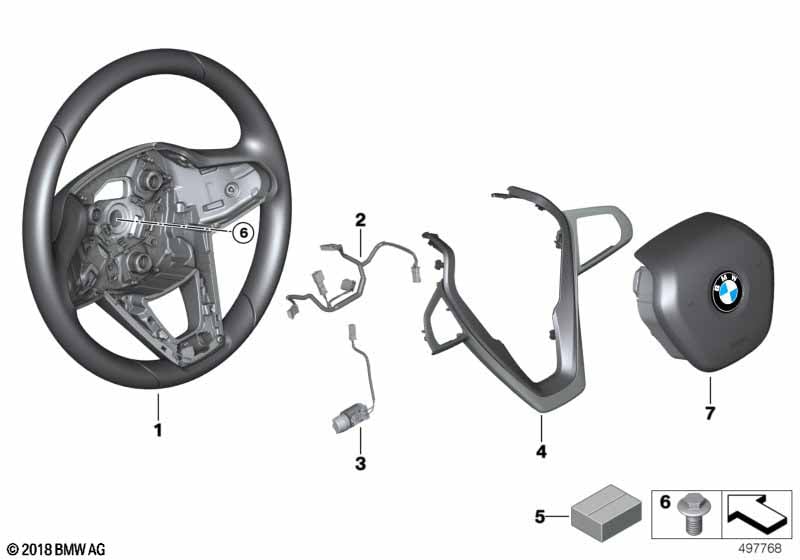

This Leather steering wheel technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sports leather steering wheel and BMW Individual leather steering wheel and M leather steering wheel |
S255A=No S2XNA=No S710A=No |
||||||||
| 01 | Leather steering wheel | 1 | 32307950721 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Driving assistant professional |
S248A=No S5AUA=No |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32307950708 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Driving assistant professional |
S248A=No S5AUA=Yes |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32307950706 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Driving assistant professional |
S248A=Yes S5AUA=Yes |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32307950705 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Driving assistant professional |
S248A=Yes S5AUA=No |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32307950707 | Shop at ECS Tuning | ||||||
| For vehicles with Active Guard Plus and Driving Assistant and Active Guard Including screws |
S5AQA=Yes S5ASA=Yes S5AVA=Yes |
|||||||||
| 03 | Vibration generator | 1 | 32307950700 | Shop at ECS Tuning | ||||||
| 04 | Decor trim cover, steering wheel | 1 | 32307950712 | Shop at ECS Tuning | ||||||
| 05 | Set of screws | 1 | 32308746686 | Shop at ECS Tuning | ||||||
| 06 | Torx screw, micro-encapsulated | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific |
S230A=No |
|||||||||
| 07 | Airbag module, driver's side | 1 | 32307945852 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific |
S230A=Yes |
|||||||||
| 07 | Airbag module, driver's side | 1 | 32307945853 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
