M sports strng whl,airbag,multifunction for BMW 2 Series F44 Gran Coupé 228iX (2024)

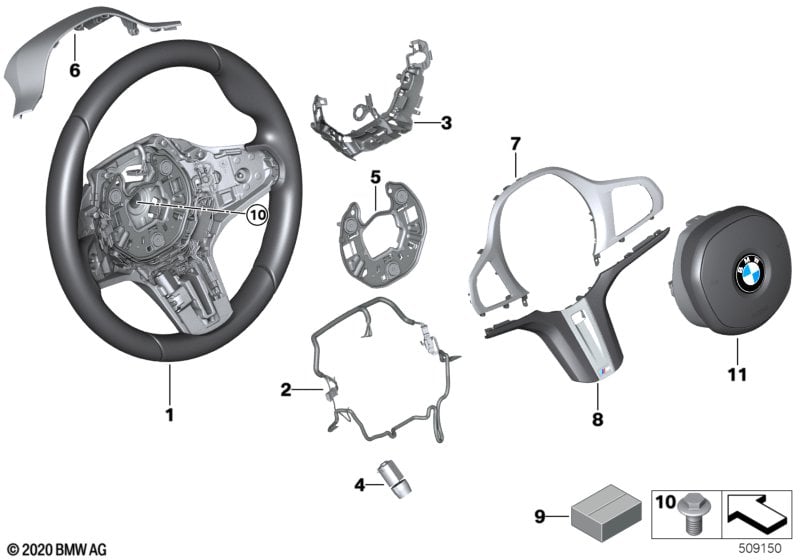

This M sports strng whl,airbag,multifunction technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 228iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M leather steering wheel |
S710A=Yes |
||||||||
| For vehicles with Steering wheel heater |
S248A=No |
|||||||||
| 01 | M Sport steering wheel | M | 1 | 32308746675 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater |
S248A=Yes |
|||||||||
| 01 | M Sport steering wheel | M | 1 | 32308746687 | Shop at ECS Tuning | |||||
| incl. conduit and equipment-relevant E-Box |
||||||||||
| 02 | connecting line, steering wheel | 1 | 32308746679 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater incl. conduit and equipment-relevant E-Box |
S248A=Yes |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32309503655 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater |
S248A=No |
|||||||||
| 03 | Cable duct | 1 | 32308084806 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater |
S248A=Yes |
|||||||||
| 03 | Cable duct | 1 | 32308084805 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional |
S5ASA=No S5AUA=No |
|||||||||
| 04 | Balance weight | 1 | 32308084800 | Shop at ECS Tuning | ||||||
| For vehicles with Active Guard Plus and Driving Assistant and Driving assistant professional |
S5AQA=Yes S5ASA=Yes S5AUA=Yes |
|||||||||
| 04 | Vibration generator | 1 | 32308746674 | Shop at ECS Tuning | ||||||
| 05 | Horn plate | M | 1 | 61319882774 | Shop at ECS Tuning | |||||
| 06 | Cover for steering wheel, upper | 1 | 32309503017 | Shop at ECS Tuning | ||||||
| 07 | Decor trim cover, steering wheel | 1 | 32308746676 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater |
S248A=No |
|||||||||
| 08 | Steering wheel decorative trim bottom | 1 | 32308746677 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater |
S248A=Yes |
|||||||||
| 08 | Steering wheel decorative trim bottom | 1 | 32308746678 | Shop at ECS Tuning | ||||||
| 09 | Set of screws | 1 | 32308746686 | Shop at ECS Tuning | ||||||
| 10 | Torx screw, micro-encapsulated | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| 11 | Airbag module, driver's side | 1 | 32308089627 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F44 Gran Coupé 228iX M sports strng whl,airbag,multifunction?
- This technical diagram illustrates the M sports strng whl,airbag,multifunction within the Steering group for the 2 Series F44 Gran Coupé 228iX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the M Sport steering wheel (Part #32308746675).
- Which models use the hardware listed in this M sports strng whl,airbag,multifunction?
- The hardware and components featured in the M sports strng whl,airbag,multifunction are specific to the 2 Series F44 Gran Coupé 228iX produced during 2024. These technical specifications ensure that parts like the M Sport steering wheel (32308746675) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the M sports strng whl,airbag,multifunction assembly?
- Each item in the M sports strng whl,airbag,multifunction corresponds to the numbered list below the illustration. For the 2 Series F44 Gran Coupé 228iX, you can identify the M Sport steering wheel by locating its position on the schematic, which then links to the official BMW part number 32308746675 for the Steering section.
