Electrical steering for BMW 7 Series F02 LCI 760Li (2015)

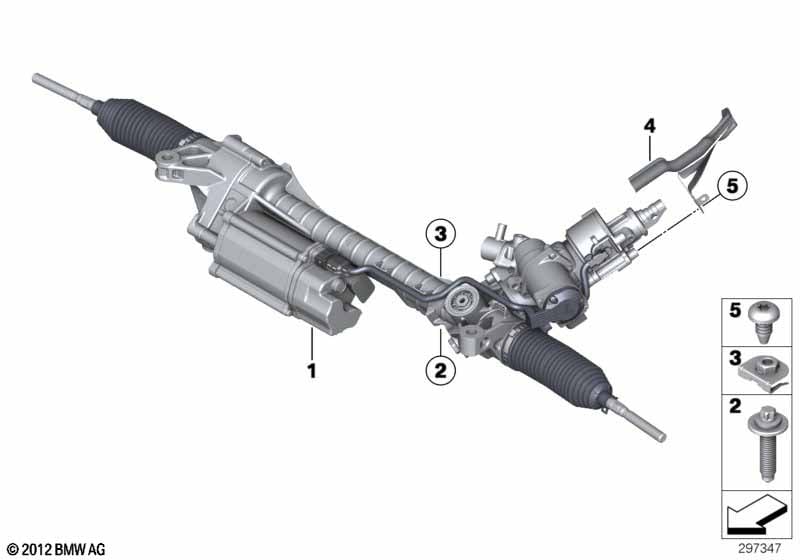

This Electrical steering technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP steering gear, electrical | 24V | 1 | 32106869222 | ENDED | Shop at ECS Tuning | ||||
| contains EPS control unit | ||||||||||
| 01 | Steering gear, electric | 24V | 1 | 32106873502 | Shop at ECS Tuning | |||||
| contains EPS control unit | ||||||||||
| Reman Local Reman China Only valid for Chinese market! |
||||||||||
| 01 | RP REMAN steering gear, electrical | CN | 1 | 32105A25C84 | Shop at ECS Tuning | |||||
| contains EPS control unit | ||||||||||
| 02 | ASA-Bolt | M12X1,5X56-10.9 | 2 | 32106781622 | $2.89 | Shop at ECS Tuning | ||||
| 03 | Hex nut | M12X1.5-10.9 | 2 | 32106874222 | Shop at ECS Tuning | |||||
| 04 | Steering box heat resistant plate | 1 | 32106855010 | Shop at ECS Tuning | ||||||
| 05 | Torx screw, self-threading | M6X13-ZNNIVSI | 3 | 31146786689 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
