Steering column man.adjust./Mount. parts for BMW 3 Series G80 M3 M3 (2024)

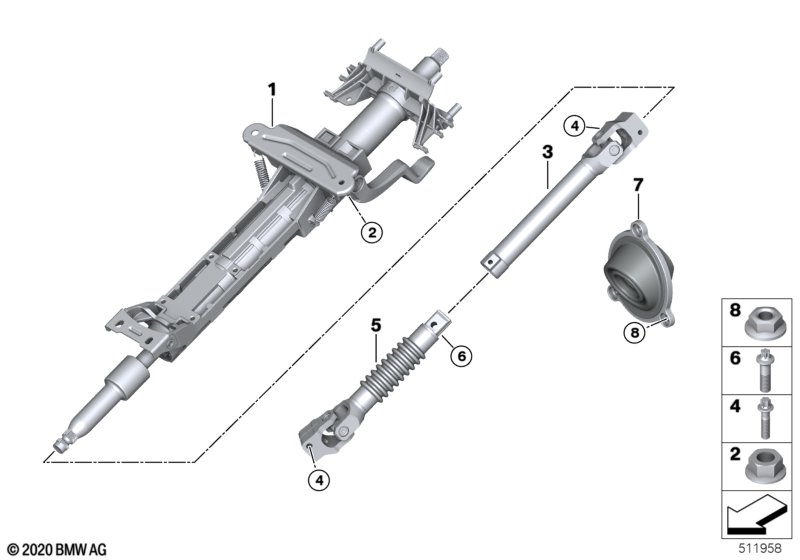

This Steering column man.adjust./Mount. parts technical drawing provides a detailed breakdown of the assembly for the 3 Series G80 M3 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Manually adjust. steering column | 1 | 32307883314 | Shop at ECS Tuning | ||||||
| 02 | Hex nut | M8-ZNS3 | 4 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 03 | Lower joint assy | 1 | 32308095842 | Shop at ECS Tuning | ||||||
| 04 | Torx bolt | M8X33 | 2 | 32306778609 | $0.67 | Shop at ECS Tuning | ||||
| 05 | Swivel joint | 1 | 32308095843 | Shop at ECS Tuning | ||||||
| 06 | Torx bolt | M8X33 | 1 | 32306778609 | $0.67 | Shop at ECS Tuning | ||||
| 07 | Cup | 1 | 32306862097 | Shop at ECS Tuning | ||||||
| 08 | Hex nut | M6-8-SC-ZNNIV S | 3 | 34506859776 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G80 M3 M3 Steering column man.adjust./Mount. parts?
- This technical diagram illustrates the Steering column man.adjust./Mount. parts within the Steering group for the 3 Series G80 M3 M3 produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Manually adjust. steering column (Part #32307883314).
- Which models use the hardware listed in this Steering column man.adjust./Mount. parts?
- The hardware and components featured in the Steering column man.adjust./Mount. parts are specific to the 3 Series G80 M3 M3 produced during 2024. These technical specifications ensure that parts like the Manually adjust. steering column (32307883314) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering column man.adjust./Mount. parts assembly?
- Each item in the Steering column man.adjust./Mount. parts corresponds to the numbered list below the illustration. For the 3 Series G80 M3 M3, you can identify the Manually adjust. steering column by locating its position on the schematic, which then links to the official BMW part number 32307883314 for the Steering section.
