Airbag sports steering wheel for BMW MINI F55 LCI One (2024)

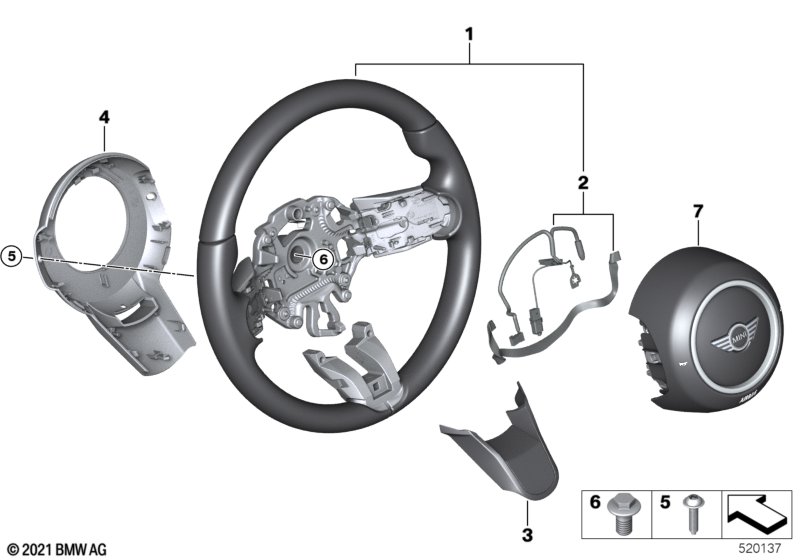

This Airbag sports steering wheel technical drawing provides a detailed breakdown of the assembly for the MINI F55 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sport automatic transmission and Sport transmission w/ dual-plate clutch and Steering wheel leather Nappa |
S2TBA=No S2TCA=No S2XDA=No |
||||||||
| For vehicles with Steering wheel heater Including vehicle wiring harness |
S248A=No |
|||||||||
| 01 | Sport steering wheel, leather | 1 | 32305A0C812 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater Including vehicle wiring harness |
S248A=Yes |
|||||||||
| 01 | Sport steering wheel, leather | 1 | 32305A0C813 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater |
S248A=No |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32306864895 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater |
S248A=Yes |
|||||||||
| 02 | Connecting line steering wheel | 1 | 32305A32949 | Shop at ECS Tuning | ||||||
| 03 | Cover f sports steering wheel, bottom | 1 | 32305A32951 | Shop at ECS Tuning | ||||||
| 04 | Cover for steering wheel, rear | 1 | 32305A0C811 | Shop at ECS Tuning | ||||||
| 05 | Screw for thermoplastic plastics | TS4X17 TORX T25 | 2 | 61319318951 | Shop at ECS Tuning | |||||
| 06 | Torx screw, micro-encapsulated | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| 07 | Airbag unit sports steer.wheel DS | 1 | 32309462208 | Shop at ECS Tuning | ||||||
