JCW steering wheel with paddles for BMW MINI F56 LCI JCW (2024)

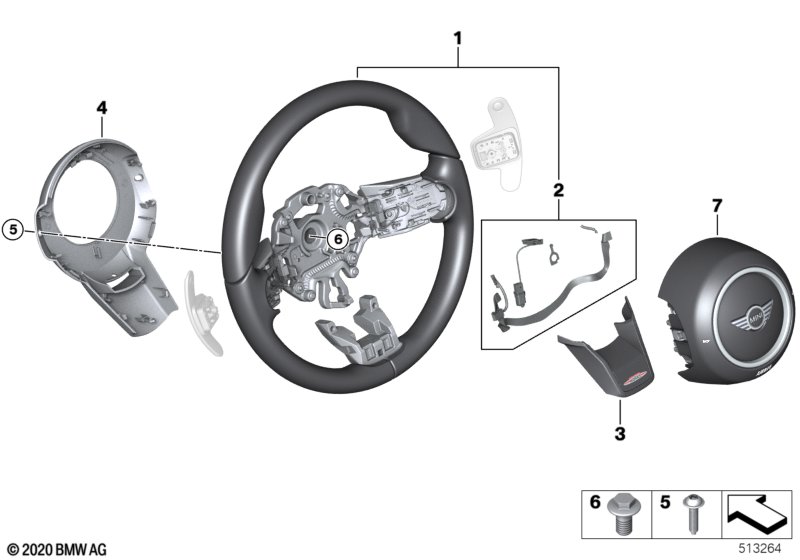

This JCW steering wheel with paddles technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Steering wheel leather Nappa |
S2XDA=Yes |
||||||||
| For vehicles with Steering wheel heater Including vehicle wiring harness |
S248A=Yes |
|||||||||
| 01 | Sprt st. wheel, leather, shift paddles | 1 | 32305A0C817 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater Including vehicle wiring harness |
S248A=No |
|||||||||
| 01 | Sprt st. wheel, leather, shift paddles | 1 | 32305A0C816 | Shop at ECS Tuning | ||||||
| 02 | connecting line, steering wheel | 1 | 32306864896 | Shop at ECS Tuning | ||||||
| 03 | Cover f sports steering wheel, bottom | JCW | 1 | 02/2021 | 32307911388 | Shop at ECS Tuning | ||||
| 04 | Cover for steering wheel, rear | 1 | 32305A0C811 | Shop at ECS Tuning | ||||||
| 05 | Screw for thermoplastic plastics | TS4X17 TORX T25 | 2 | 61319318951 | Shop at ECS Tuning | |||||
| 06 | Torx screw, micro-encapsulated | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 07 | Airbag unit sports steer.wheel DS | 1 | 32309462214 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea |
L802A=No |
|||||||||
| 07 | Airbag unit sports steer.wheel DS | 1 | 32309462208 | Shop at ECS Tuning | ||||||
