M sports strng whl,airb.-smart,multifunc for BMW 6 Series E63 650i (2007)

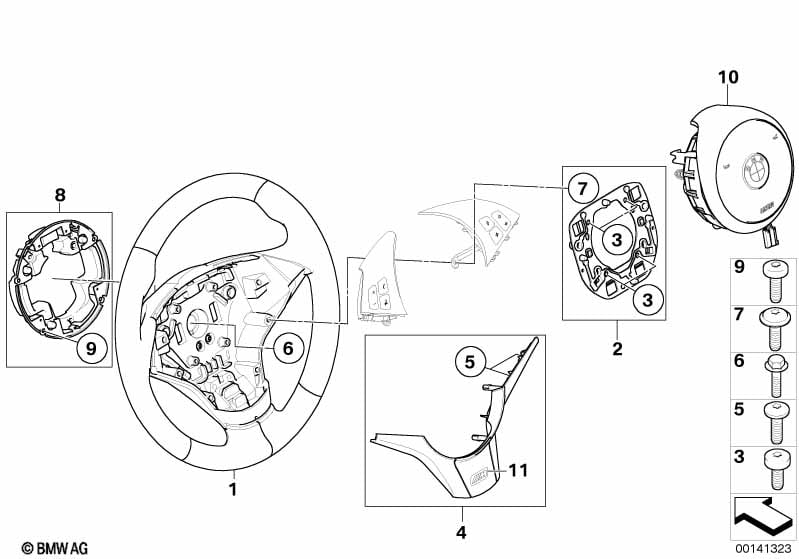

This M sports strng whl,airb.-smart,multifunc technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | M sports steer.-wheel, airbag, leather | SCHWARZ | 1 | 09/2005 | 32342283939 | $496.95 | Shop at ECS Tuning | |||
| 02 | Mounting plate steering wheel with bolts | 1 | 09/2005 | 32346772990 | $22.99 | Shop at ECS Tuning | ||||
| 03 | Torx screw | M5X12,5MM | 4 | 32346766011 | $0.80 | Shop at ECS Tuning | ||||
| 04 | Decorative clips with screw | SOFTLACK-SCHW. | 1 | 32347841044 | $68.52 | Shop at ECS Tuning | ||||
| 05 | Torx screw | 4 | 32346763366 | $1.34 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M12 | 1 | 32311159951 | $3.42 | Shop at ECS Tuning | ||||
| 07 | Sheet metal screw | M4X12,5MM | 2 | 32346767106 | $0.80 | Shop at ECS Tuning | ||||
| 10 | Airbag module, driver's side | 1 | 09/2005 | 32346780456 | $893.32 | Shop at ECS Tuning | ||||
| 11 | M badge | 1 | 36112228660 | $6.62 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E63 650i M sports strng whl,airb.-smart,multifunc?
- This technical diagram illustrates the M sports strng whl,airb.-smart,multifunc within the Steering group for the 6 Series E63 650i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the M sports steer.-wheel, airbag, leather (Part #32342283939).
- Which models use the hardware listed in this M sports strng whl,airb.-smart,multifunc?
- The hardware and components featured in the M sports strng whl,airb.-smart,multifunc are specific to the 6 Series E63 650i produced during 2007. These technical specifications ensure that parts like the M sports steer.-wheel, airbag, leather (32342283939) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the M sports strng whl,airb.-smart,multifunc assembly?
- Each item in the M sports strng whl,airb.-smart,multifunc corresponds to the numbered list below the illustration. For the 6 Series E63 650i, you can identify the M sports steer.-wheel, airbag, leather by locating its position on the schematic, which then links to the official BMW part number 32342283939 for the Steering section.
