Steering linkage/tie rods for BMW 7 Series G70 735i (2025)

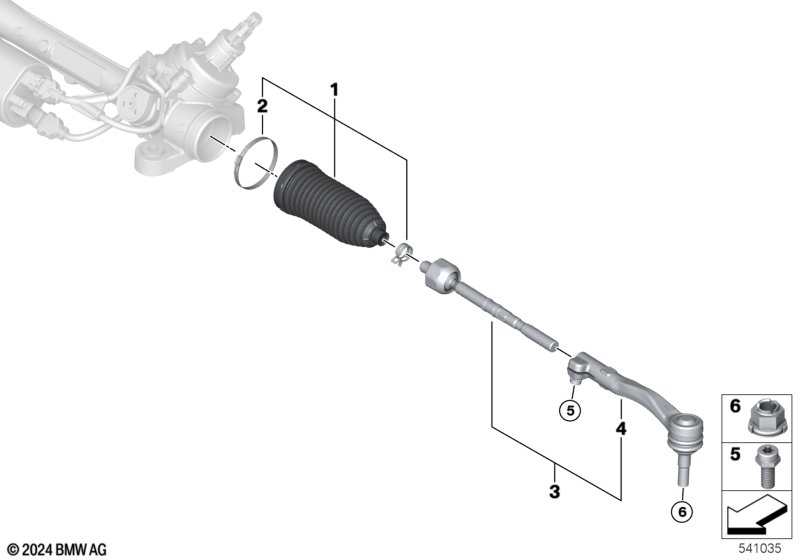

This Steering linkage/tie rods technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair kit bellows | 2 | 32105A34C17 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Grease FB-1 | 100G | 1 | 83238849305 | Shop at ECS Tuning | |||||
| 02 | Hose clamp | D= 67,8 - 71,0 | 2 | 32136751292 | $4.38 | Shop at ECS Tuning | ||||
| 03 | Tie rod left | 1 | 32105A2BD09 | Shop at ECS Tuning | ||||||
| 03 | Tie rod right | 1 | 32105A2BD10 | Shop at ECS Tuning | ||||||
| 04 | Ball joint left | 1 | 32105A656F8 | Shop at ECS Tuning | ||||||
| 04 | Ball joint right | 1 | 32105A65700 | Shop at ECS Tuning | ||||||
| 05 | Clamping bolt | M10X1X22-10.9 | 2 | 32106765080 | $3.27 | Shop at ECS Tuning | ||||
| 06 | Combination nut | M14X1,5-10ZNNIV | 2 | 33306787062 | $1.88 | Shop at ECS Tuning | ||||
