Electron.steer. column adj./add-on parts for BMW 7 Series G70 750eX (2025)

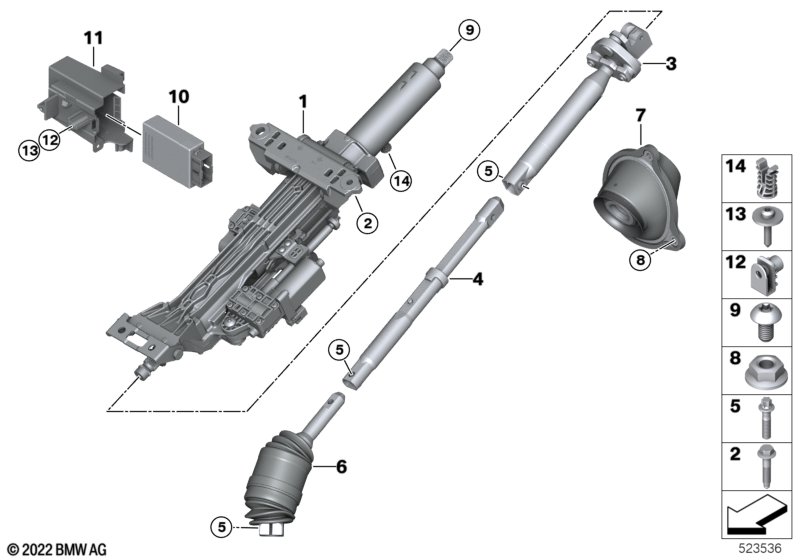

This Electron.steer. column adj./add-on parts technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 750eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steering wheel column adjustment,electr. | 1 | 32305A81931 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt | 8X45 ZNS3 | 4 | 32306894140 | Shop at ECS Tuning | |||||
| 03 | Steering spindle upper | 1 | 32305A819F5 | NoS | Shop at ECS Tuning | |||||
| 05 | Torx bolt | M8X33 | 2 | 32306778609 | $0.67 | Shop at ECS Tuning | ||||
| 06 | Swivel joint | 1 | 32305B7BED6 | Shop at ECS Tuning | ||||||
| 07 | Steering shaft sleeve | 1 | 32306898711 | Shop at ECS Tuning | ||||||
| 08 | Hex nut | M6-8-SC-ZNNIV S | 3 | 34506859776 | Shop at ECS Tuning | |||||
| 09 | Torx screw, micro-encapsulated | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| 10 | Control unit steering column | 1 | 32309630191 | Shop at ECS Tuning | ||||||
| 11 | Control unit bracket | 1 | 32305A01F00 | Shop at ECS Tuning | ||||||
| 12 | C-clip sheet metal nut | 1 | 07149319414 | Shop at ECS Tuning | ||||||
| 13 | Combi. fillister head self-tapping screw | 1 | 07149323312 | NoS | Shop at ECS Tuning | |||||
| 14 | Securing pin | 1 | 32305A11628 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
