M Sport steering wheel, airbag for BMW 7 Series G70 735i (2025)

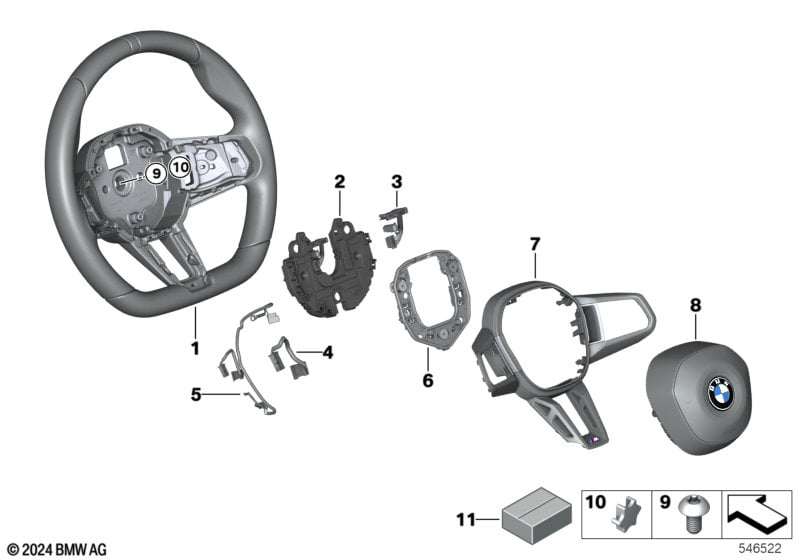

This M Sport steering wheel, airbag technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Switch, multifunction and shift paddles, see HG61 FG35 For vehicles with BMW Personal pilot and M leather steering wheel |
S5DXA=No S710A=Yes |
||||||||
| 01 | M Sport steering wheel, shift paddles | SCHWARZ | 1 | 32305A716B9 | Shop at ECS Tuning | |||||
| For vehicles with BMW Ind.leather w/lux.leather Tartufo |
VDTQ=Yes |
|||||||||
| 01 | M Sport steering wheel leather | NACHTBLAU | 1 | 32305A716C1 | Shop at ECS Tuning | |||||
| For vehicles with BMW Ind.leather w/lux.F2 Amarone or Leath.Merino/Wk lux.Smoke White/lt.gy |
VDF2=Yes VEII=Yes |
|||||||||
| 01 | M Sport steering wheel, shift paddles | ATLASGRAU | 1 | 32305A716C0 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant Plus and Driving assistant professional and Preparation Driving Assistant Plus Steering wheel electronics including connecting line switch cluster |
S5ATA=No S5AUA=No S9QVA=No |
|||||||||
| 02 | Steering wheel electronic control | 1 | 32305B4FF39 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant Plus and Driving assistant professional and Preparation Driving Assistant Plus Steering wheel electronics including connecting line switch cluster |
S5ATA=Yes S5AUA=Yes S9QVA=Yes |
|||||||||
| 02 | Steering wheel electronic control | 1 | 32305B4FF40 | Shop at ECS Tuning | ||||||
| Connecting line switch cluster | ||||||||||
| 03 | connecting line, steering wheel | 1 | 32305A41AD8 | Shop at ECS Tuning | ||||||
| Connecting line multifunction | ||||||||||
| 04 | Connecting line multifunction | 1 | 32305A6A5E5 | Shop at ECS Tuning | ||||||
| Ground cable including screw | ||||||||||
| 05 | Ground cable steering wheel | 1 | 32305A6A5E7 | Shop at ECS Tuning | ||||||
| 06 | Horn plate | 1 | 32305A6A5E8 | Shop at ECS Tuning | ||||||
| 07 | Decorative trim M Sport steering wheel | 1 | 32305A716B6 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Extra package, EU-specific |
L8AAA=Yes S230A=Yes |
|||||||||
| 08 | Airbag unit driver's side | SCHWARZ | 1 | 32305A36532 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Extra package, EU-specific |
L8AAA=No S230A=No |
|||||||||
| 08 | Airbag unit driver's side | SCHWARZ | 1 | 32305A36517 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Extra package, EU-specific and BMW Ind.leather w/lux.leather Tartufo |
L8AAA=No S230A=No VDTQ=Yes |
|||||||||
| 08 | Airbag unit driver's side | NACHTBLAU | 1 | 32305A23A53 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Extra package, EU-specific and BMW Ind.leather w/lux.leather Tartufo |
L8AAA=Yes S230A=Yes VDTQ=Yes |
|||||||||
| 08 | Airbag unit driver's side | NACHTBLAU | 1 | 32305A23A56 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Extra package, EU-specific and BMW Ind.leather w/lux.F2 Amarone or Leath.Merino/Wk lux.Smoke White/lt.gy |
L8AAA=No S230A=No VDF2=Yes VEII=Yes |
|||||||||
| 08 | Airbag unit driver's side | ATLASGRAU | 1 | 32305A23A62 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Extra package, EU-specific and BMW Ind.leather w/lux.F2 Amarone or Leath.Merino/Wk lux.Smoke White/lt.gy |
L8AAA=Yes S230A=Yes VDF2=Yes VEII=Yes |
|||||||||
| 08 | Airbag unit driver's side | ATLASGRAU | 1 | 32305A23A65 | Shop at ECS Tuning | |||||
| 09 | Torx screw, micro-encapsulated | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| 10 | Screw locking insert | 1 | 32305A638F7 | Shop at ECS Tuning | ||||||
| 11 | Kit screws | 1 | 32305A6A5F1 | Shop at ECS Tuning | ||||||
