Electrical steering for BMW 5 Series G60 Sedan 520d (2025)

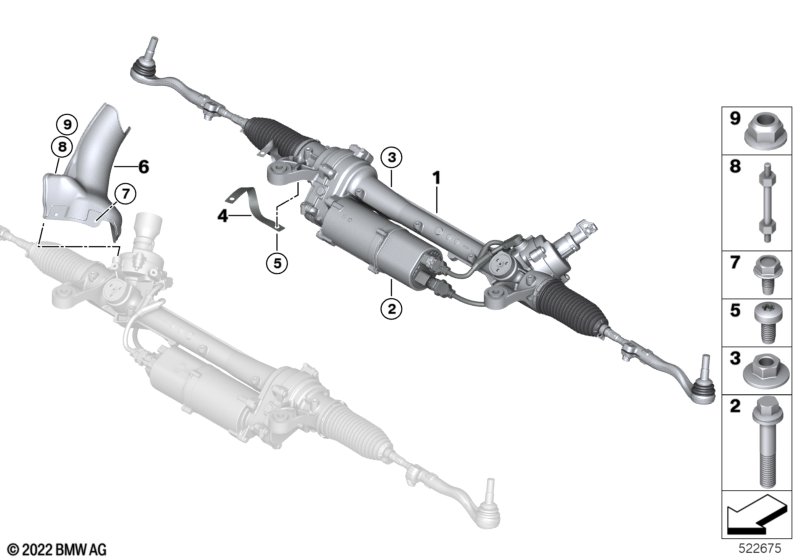

This Electrical steering technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steering gear, electric | 1 | 03/2025 | 32105B4D321 | Shop at ECS Tuning | |||||
| 01 | Steering gear, electric | 1 | 32105B619E0 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt | 12X1,5X70 ZNS3 | 2 | 07146898283 | Shop at ECS Tuning | |||||
| 03 | Hex nut | M12X1.5-10.9 | 2 | 32106874222 | Shop at ECS Tuning | |||||
| 04 | Earth strap | 1 | 32105A08230 | Shop at ECS Tuning | ||||||
| 05 | Oval-head machine screw, self-threading | M6X13 ZNS3 | 2 | 07147317732 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 520d Electrical steering?
- This technical diagram illustrates the Electrical steering within the Steering group for the 5 Series G60 Sedan 520d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Steering gear, electric (Part #32105B4D321).
- Which models use the hardware listed in this Electrical steering?
- The hardware and components featured in the Electrical steering are specific to the 5 Series G60 Sedan 520d produced during 2025. These technical specifications ensure that parts like the Steering gear, electric (32105B4D321) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Electrical steering assembly?
- Each item in the Electrical steering corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 520d, you can identify the Steering gear, electric by locating its position on the schematic, which then links to the official BMW part number 32105B4D321 for the Steering section.
