M Sport steering wheel, airbag for BMW 1 Series F40 120dX (2024)

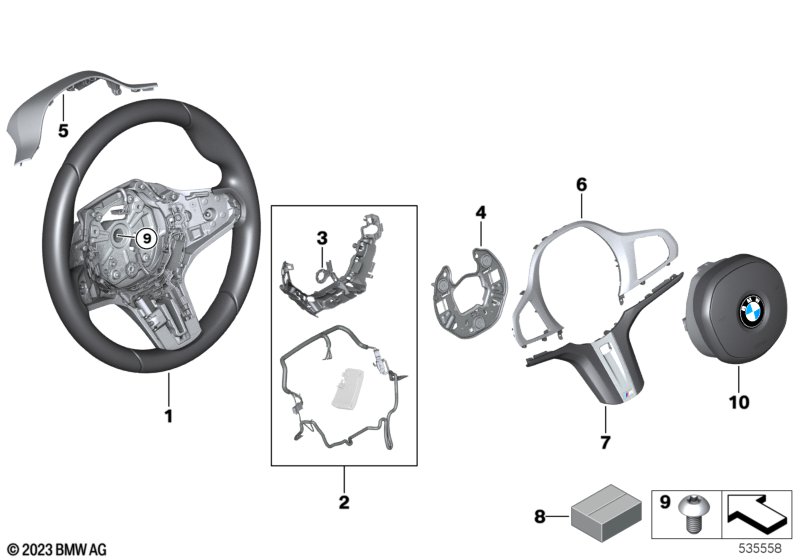

This M Sport steering wheel, airbag technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 120dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Switch, multifunction and shift paddles, see HG61 FG35 For vehicles with M leather steering wheel |
S710A=Yes |
||||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=Yes S2TBA=Yes S2TCA=Yes |
|||||||||
| 01 | M Sport steering wheel, shift paddles | 1 | 32308746691 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=Yes S2TBA=Yes S2TCA=No |
|||||||||
| 01 | M Sport steering wheel, shift paddles | 1 | 32308746691 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=Yes S2TBA=No S2TCA=Yes |
|||||||||
| 01 | M Sport steering wheel, shift paddles | 1 | 32308746691 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=No S2TBA=Yes S2TCA=Yes |
|||||||||
| 01 | M Sport steering wheel, shift paddles | 1 | 32308746690 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=No S2TBA=Yes S2TCA=No |
|||||||||
| 01 | M Sport steering wheel, shift paddles | 1 | 32308746690 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=No S2TBA=No S2TCA=Yes |
|||||||||
| 01 | M Sport steering wheel, shift paddles | 1 | 32308746690 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=Yes S2TBA=No S2TCA=No |
|||||||||
| 01 | M Sport steering wheel | M | 1 | 32308746687 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=No S2TBA=No S2TCA=No |
|||||||||
| 01 | M Sport steering wheel | M | 1 | 32308746675 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch incl. conduit and equipment-relevant E-Box |
S248A=Yes S2TBA=Yes S2TCA=Yes |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32309503656 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch incl. conduit and equipment-relevant E-Box |
S248A=Yes S2TBA=Yes S2TCA=No |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32309503656 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch incl. conduit and equipment-relevant E-Box |
S248A=Yes S2TBA=No S2TCA=Yes |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32309503656 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch incl. conduit and equipment-relevant E-Box |
S248A=No S2TBA=Yes S2TCA=Yes |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32308746685 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch incl. conduit and equipment-relevant E-Box |
S248A=No S2TBA=Yes S2TCA=No |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32308746685 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch incl. conduit and equipment-relevant E-Box |
S248A=No S2TBA=No S2TCA=Yes |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32308746685 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch incl. conduit and equipment-relevant E-Box |
S248A=Yes S2TBA=No S2TCA=No |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32309503655 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch incl. conduit and equipment-relevant E-Box |
S248A=No S2TBA=No S2TCA=No |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32308746679 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater |
S248A=Yes |
|||||||||
| 03 | Cable duct | 1 | 32308084805 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater |
S248A=No |
|||||||||
| 03 | Cable duct | 1 | 32308084806 | Shop at ECS Tuning | ||||||
| 04 | Horn plate | M | 1 | 61319882774 | Shop at ECS Tuning | |||||
| 05 | Cover for steering wheel, upper | 1 | 32309503017 | Shop at ECS Tuning | ||||||
| 06 | Decor trim cover, steering wheel | 1 | 32308746676 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater |
S248A=Yes |
|||||||||
| 07 | Steering wheel decorative trim bottom | 1 | 32308746678 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater |
S248A=No |
|||||||||
| 07 | Steering wheel decorative trim bottom | 1 | 32308746677 | Shop at ECS Tuning | ||||||
| 08 | Set of screws | 1 | 32308746686 | Shop at ECS Tuning | ||||||
| 09 | Torx screw, micro-encapsulated | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| 10 | Airbag module, driver's side | 1 | 32305A24B13 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
