Airbag sports steering wheel for BMW 1 Series F40 120dX (2023)

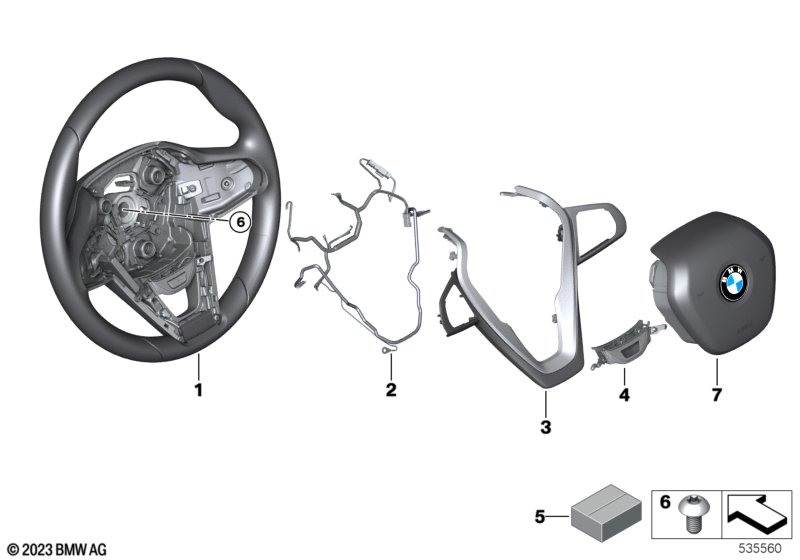

This Airbag sports steering wheel technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 120dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Switch, multifunction and shift paddles, see HG61 FG35 For vehicles with Sports leather steering wheel and M leather steering wheel |
S255A=Yes S710A=No |
||||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=No S2TBA=No S2TCA=No |
|||||||||
| 01 | Sport steering wheel, leather | 1 | 32307950720 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=Yes S2TBA=Yes S2TCA=Yes |
|||||||||
| 01 | Sports steering wheel, shift paddles | SCHWARZ/ROT | 1 | 32307950715 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=Yes S2TBA=Yes S2TCA=No |
|||||||||
| 01 | Sports steering wheel, shift paddles | SCHWARZ/ROT | 1 | 32307950715 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=Yes S2TBA=No S2TCA=Yes |
|||||||||
| 01 | Sports steering wheel, shift paddles | SCHWARZ/ROT | 1 | 32307950715 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=Yes S2TBA=No S2TCA=No |
|||||||||
| 01 | Sport steering wheel, leather | 1 | 32307950719 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=No S2TBA=Yes S2TCA=Yes |
|||||||||
| 01 | Sports steering wheel, shift paddles | 1 | 32307950716 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=No S2TBA=Yes S2TCA=No |
|||||||||
| 01 | Sports steering wheel, shift paddles | 1 | 32307950716 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=No S2TBA=No S2TCA=Yes |
|||||||||
| 01 | Sports steering wheel, shift paddles | 1 | 32307950716 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=No S2TBA=No S2TCA=No |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32307950708 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=Yes S2TBA=Yes S2TCA=Yes |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32307950703 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=Yes S2TBA=Yes S2TCA=No |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32307950703 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=Yes S2TBA=No S2TCA=Yes |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32307950703 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=Yes S2TBA=No S2TCA=No |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32307950707 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=No S2TBA=Yes S2TCA=Yes |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32307950704 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=No S2TBA=Yes S2TCA=No |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32307950704 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S248A=No S2TBA=No S2TCA=Yes |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32307950704 | Shop at ECS Tuning | ||||||
| 03 | Decor trim cover, steering wheel | 1 | 32307950711 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater |
S248A=Yes |
|||||||||
| 04 | Decor.trim switch steering wheel heating | 1 | 32309892215 | Shop at ECS Tuning | ||||||
| 05 | Set of screws | 1 | 32307950709 | Shop at ECS Tuning | ||||||
| 06 | Torx screw, micro-encapsulated | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| 07 | Airbag module, driver's side | 1 | 32305A24B03 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F40 120dX Airbag sports steering wheel?
- This technical diagram illustrates the Airbag sports steering wheel within the Steering group for the 1 Series F40 120dX produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Sport steering wheel, leather (Part #32307950720).
- Which models use the hardware listed in this Airbag sports steering wheel?
- The hardware and components featured in the Airbag sports steering wheel are specific to the 1 Series F40 120dX produced during 2023. These technical specifications ensure that parts like the Sport steering wheel, leather (32307950720) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Airbag sports steering wheel assembly?
- Each item in the Airbag sports steering wheel corresponds to the numbered list below the illustration. For the 1 Series F40 120dX, you can identify the Sport steering wheel, leather by locating its position on the schematic, which then links to the official BMW part number 32307950720 for the Steering section.
