Steering wheel airbag for BMW 1 Series F40 120i (2024)

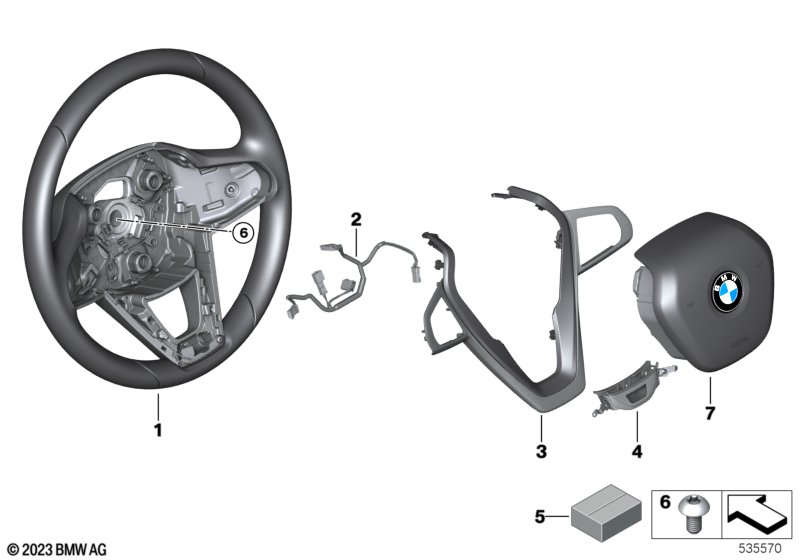

This Steering wheel airbag technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sports leather steering wheel and M leather steering wheel |
S255A=No S710A=No |
||||||||
| 01 | Leather steering wheel | 1 | 32309484768 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater |
S248A=Yes |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32307950707 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater |
S248A=No |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32307950708 | Shop at ECS Tuning | ||||||
| 03 | Decor trim cover, steering wheel | 1 | 32307950712 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater |
S248A=Yes |
|||||||||
| 04 | Decor.trim switch steering wheel heating | 1 | 32309892215 | Shop at ECS Tuning | ||||||
| 05 | Set of screws | 1 | 32307950709 | Shop at ECS Tuning | ||||||
| 06 | Torx screw, micro-encapsulated | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 07 | Airbag module, driver's side | 1 | 32305A24AD9 | Shop at ECS Tuning | ||||||
| 07 | Airbag module, driver's side | 1 | 32305A24B04 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea |
L802A=No |
|||||||||
| 07 | Airbag module, driver's side | 1 | 32305A24AD8 | Shop at ECS Tuning | ||||||
