Airbag sports steering wheel for BMW 5 Series G60 Sedan 530eX (2025)

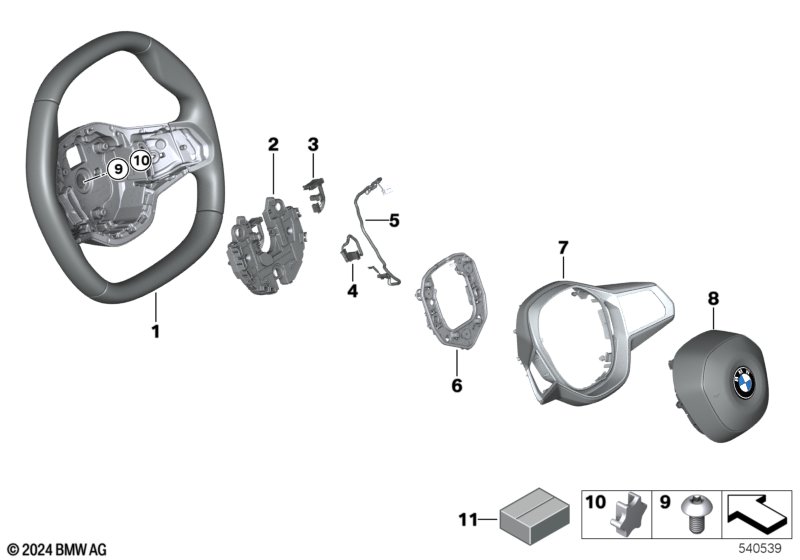

This Airbag sports steering wheel technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 530eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Switch, multifunction and shift paddles, see HG61 FG35 For vehicles with M leather steering wheel |
S710A=No |
||||||||
| 01 | Sports steering wheel, shift paddles | 1 | 32335A95149 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant Plus and Driving assistant professional |
S5ATA=Yes S5AUA=Yes |
|||||||||
| 02 | Steering wheel electronic control | 1 | 32305B4FF40 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant Plus and Driving assistant professional |
S5ATA=Yes S5AUA=No |
|||||||||
| 02 | Steering wheel electronic control | 1 | 32305B4FF40 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant Plus and Driving assistant professional |
S5ATA=No S5AUA=Yes |
|||||||||
| 02 | Steering wheel electronic control | 1 | 32305B4FF40 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant Plus and Driving assistant professional |
S5ATA=No S5AUA=No |
|||||||||
| 02 | Steering wheel electronic control | 1 | 32305B4FF39 | Shop at ECS Tuning | ||||||
| 03 | connecting line, steering wheel | 1 | 32305A41AD8 | Shop at ECS Tuning | ||||||
| 04 | Connecting line multifunction | 1 | 32305A6A5E5 | Shop at ECS Tuning | ||||||
| 05 | Ground cable steering wheel | 1 | 32305A6A5E7 | Shop at ECS Tuning | ||||||
| 06 | Horn plate | 1 | 32305A6A5E8 | Shop at ECS Tuning | ||||||
| For vehicles with Fine wood, Fineline, light, open-pore and Fine wood, Fineline, open-pore |
S43KA=No S43NA=No |
|||||||||
| 07 | Steering wheel decorative trim | 1 | 32335A95158 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fine wood, Fineline, light, open-pore and Fine wood, Fineline, open-pore |
S43KA=Yes S43NA=Yes |
|||||||||
| 07 | Steering wheel decorative trim | 1 | 32335A95159 | Shop at ECS Tuning | ||||||
| For vehicles with Fine wood, Fineline, light, open-pore and Fine wood, Fineline, open-pore |
S43KA=Yes S43NA=No |
|||||||||
| 07 | Steering wheel decorative trim | 1 | 32335A95159 | Shop at ECS Tuning | ||||||
| For vehicles with Fine wood, Fineline, light, open-pore and Fine wood, Fineline, open-pore |
S43KA=No S43NA=Yes |
|||||||||
| 07 | Steering wheel decorative trim | 1 | 32335A95159 | NoS | Shop at ECS Tuning | |||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 08 | Airbag unit driver's side | 1 | 32305A244E6 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and Extra package, EU-specific and Country-specific equipment Taiwan 04825 |
L802A=No S230A=No S8LTA=No |
|||||||||
| 08 | Airbag unit driver's side | 1 | 32305A244E3 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and Extra package, EU-specific and Country-specific equipment Taiwan 04825 |
L802A=No S230A=Yes S8LTA=Yes |
|||||||||
| 08 | Airbag unit driver's side | 1 | 32305A244E5 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and Extra package, EU-specific and Country-specific equipment Taiwan 04825 |
L802A=No S230A=Yes S8LTA=No |
|||||||||
| 08 | Airbag unit driver's side | 1 | 32305A244E5 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and Extra package, EU-specific and Country-specific equipment Taiwan 04825 |
L802A=No S230A=No S8LTA=Yes |
|||||||||
| 08 | Airbag unit driver's side | 1 | 32305A244E5 | Shop at ECS Tuning | ||||||
| 09 | Torx screw, micro-encapsulated | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| Use only for screw 9890645 Quantity 1 contains 10 units |
||||||||||
| 10 | Screw locking insert | 1 | 32305A638F7 | Shop at ECS Tuning | ||||||
| 11 | Kit screws | 1 | 32305A6A5F0 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 530eX Airbag sports steering wheel?
- This technical diagram illustrates the Airbag sports steering wheel within the Steering group for the 5 Series G60 Sedan 530eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Sports steering wheel, shift paddles (Part #32335A95149).
- Which models use the hardware listed in this Airbag sports steering wheel?
- The hardware and components featured in the Airbag sports steering wheel are specific to the 5 Series G60 Sedan 530eX produced during 2025. These technical specifications ensure that parts like the Sports steering wheel, shift paddles (32335A95149) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Airbag sports steering wheel assembly?
- Each item in the Airbag sports steering wheel corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 530eX, you can identify the Sports steering wheel, shift paddles by locating its position on the schematic, which then links to the official BMW part number 32335A95149 for the Steering section.
