M Sport steering wheel, airbag for BMW 5 Series G60 Sedan 550eX (2025)

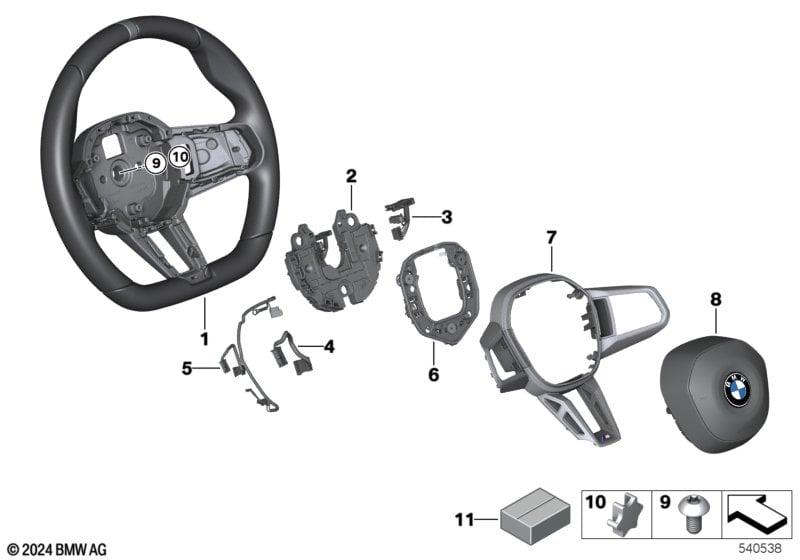

This M Sport steering wheel, airbag technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 550eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Switch, multifunction and shift paddles, see HG61 FG35 For vehicles with M leather steering wheel |
S710A=Yes |
||||||||
| 01 | M Sport steering wheel, shift paddles | SCHWARZ | 1 | 32305A716B9 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant Plus and Driving assistant professional |
S5ATA=No S5AUA=No |
|||||||||
| 02 | Steering wheel electronic control | 1 | 32305B4FF39 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant Plus and Driving assistant professional |
S5ATA=Yes S5AUA=Yes |
|||||||||
| 02 | Steering wheel electronic control | 1 | 32305B4FF40 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant Plus and Driving assistant professional |
S5ATA=Yes S5AUA=No |
|||||||||
| 02 | Steering wheel electronic control | 1 | 32305B4FF40 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant Plus and Driving assistant professional |
S5ATA=No S5AUA=Yes |
|||||||||
| 02 | Steering wheel electronic control | 1 | 32305B4FF40 | Shop at ECS Tuning | ||||||
| 03 | connecting line, steering wheel | 1 | 32305A41AD8 | Shop at ECS Tuning | ||||||
| 04 | Connecting line multifunction | 1 | 32305A6A5E5 | Shop at ECS Tuning | ||||||
| 05 | Ground cable steering wheel | 1 | 32305A6A5E7 | Shop at ECS Tuning | ||||||
| Contact bridge preassembled incl. vibration absorber, springs and screws |
||||||||||
| 06 | Horn plate | 1 | 32305A6A5E8 | Shop at ECS Tuning | ||||||
| For vehicles with Fine wood, Fineline, light, open-pore and Fine wood, Fineline, open-pore |
S43KA=No S43NA=No |
|||||||||
| 07 | Steering wheel decorative trim | 1 | 32305A716B7 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fine wood, Fineline, light, open-pore and Fine wood, Fineline, open-pore |
S43KA=Yes S43NA=Yes |
|||||||||
| 07 | Steering wheel decorative trim | 1 | 32305A716B8 | Shop at ECS Tuning | ||||||
| For vehicles with Fine wood, Fineline, light, open-pore and Fine wood, Fineline, open-pore |
S43KA=Yes S43NA=No |
|||||||||
| 07 | Steering wheel decorative trim | 1 | 32305A716B8 | Shop at ECS Tuning | ||||||
| For vehicles with Fine wood, Fineline, light, open-pore and Fine wood, Fineline, open-pore |
S43KA=No S43NA=Yes |
|||||||||
| 07 | Steering wheel decorative trim | 1 | 32305A716B8 | NoS | Shop at ECS Tuning | |||||
| 08 | Airbag unit driver's side | 1 | 32305A244E6 | Shop at ECS Tuning | ||||||
| 09 | Torx screw, micro-encapsulated | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| Use only for screw 9890645 Quantity 1 contains 10 units |
||||||||||
| 10 | Screw locking insert | 1 | 32305A638F7 | Shop at ECS Tuning | ||||||
| 11 | Kit screws | 1 | 32305A6A5F1 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
