M Sport steering wheel, airbag for BMW 4 Series G23 Convertible LCI 430i (2025)

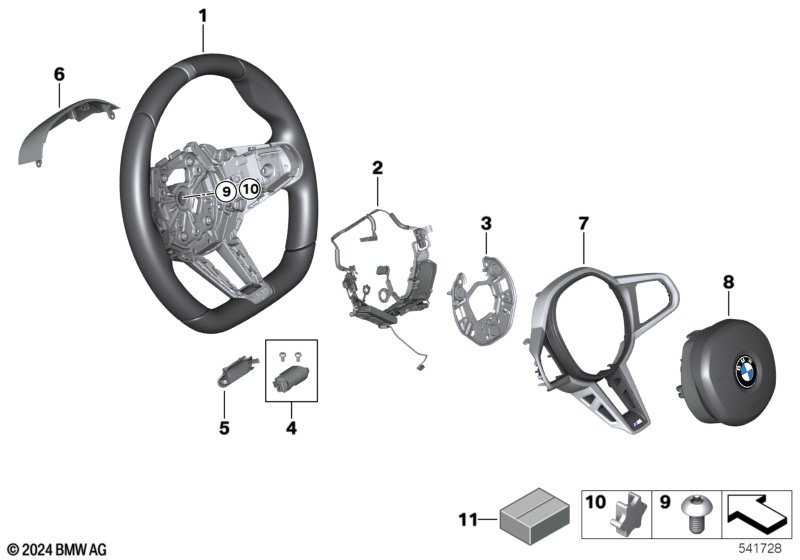

This M Sport steering wheel, airbag technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Switch, multifunction and shift paddles, see HG61 FG35 For vehicles with M leather steering wheel |
S710A=Yes |
||||||||
| For vehicles with Steering wheel heater and Driving assistant professional |
S248A=Yes S5AUA=Yes |
|||||||||
| 01 | M Sport steering wheel | M | 1 | 32305A8A8F8 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Steering wheel heater and Driving assistant professional |
S248A=No S5AUA=No |
|||||||||
| 01 | M Sport steering wheel | M | 1 | 32305A8A8F5 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Steering wheel heater and Driving assistant professional |
S248A=Yes S5AUA=No |
|||||||||
| 01 | M Sport steering wheel | M | 1 | 32305A8A8F6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Steering wheel heater and Driving assistant professional |
S248A=No S5AUA=Yes |
|||||||||
| 01 | M Sport steering wheel | M | 1 | 32305A8A8F7 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Steering wheel heater and Driving assistant professional |
S248A=Yes S5AUA=Yes |
|||||||||
| 02 | connecting line, steering wheel | M | 1 | 32305A8A927 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater and Driving assistant professional |
S248A=No S5AUA=No |
|||||||||
| 02 | connecting line, steering wheel | M | 1 | 32305A8A911 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater and Driving assistant professional |
S248A=Yes S5AUA=No |
|||||||||
| 02 | connecting line, steering wheel | M | 1 | 32305A8A926 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater and Driving assistant professional |
S248A=No S5AUA=Yes |
|||||||||
| 02 | connecting line, steering wheel | M | 1 | 32305A8A913 | Shop at ECS Tuning | |||||
| 03 | Horn plate | M | 1 | 61319882774 | Shop at ECS Tuning | |||||
| 05 | Cover | M | 1 | 32305A8A910 | NoS | Shop at ECS Tuning | ||||
| 06 | Cover for steering wheel, upper | M | 1 | 32305A8A907 | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional |
S5AUA=Yes |
|||||||||
| 07 | Decorative trim M Sport steering wheel | M | 1 | 32305A8A909 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Driving assistant professional |
S5AUA=No |
|||||||||
| 07 | Decorative trim M Sport steering wheel | M | 1 | 32305A8A908 | NoS | Shop at ECS Tuning | ||||
| 08 | Airbag module, driver's side | M | 1 | 32305A67BA3 | Shop at ECS Tuning | |||||
| 09 | Torx screw, micro-encapsulated | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| 10 | Screw locking insert | 1 | 32305A638F7 | Shop at ECS Tuning | ||||||
| 11 | Set of screws | 1 | 32305A8A8E2 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G23 Convertible LCI 430i M Sport steering wheel, airbag?
- This technical diagram illustrates the M Sport steering wheel, airbag within the Steering group for the 4 Series G23 Convertible LCI 430i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the M Sport steering wheel (Part #32305A8A8F8).
- Which models use the hardware listed in this M Sport steering wheel, airbag?
- The hardware and components featured in the M Sport steering wheel, airbag are specific to the 4 Series G23 Convertible LCI 430i produced during 2025. These technical specifications ensure that parts like the M Sport steering wheel (32305A8A8F8) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the M Sport steering wheel, airbag assembly?
- Each item in the M Sport steering wheel, airbag corresponds to the numbered list below the illustration. For the 4 Series G23 Convertible LCI 430i, you can identify the M Sport steering wheel by locating its position on the schematic, which then links to the official BMW part number 32305A8A8F8 for the Steering section.
