Steering wheel airbag for BMW 4 Series G23 Convertible LCI 420i (2025)

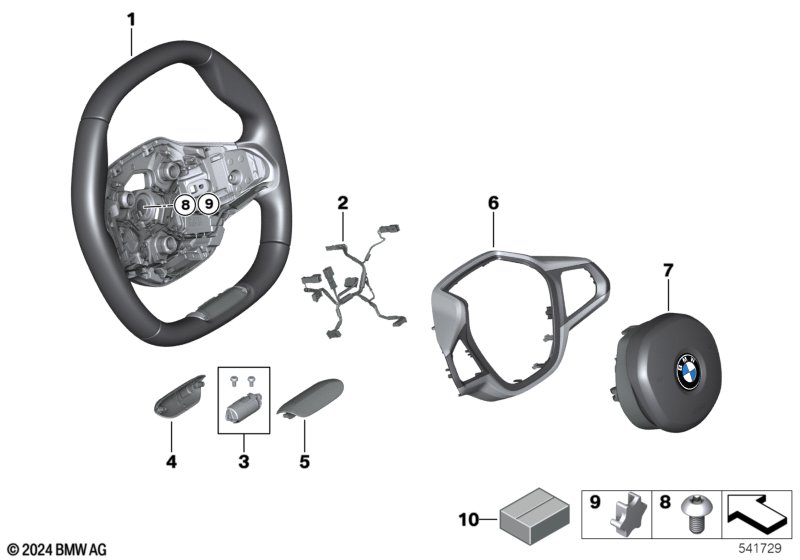

This Steering wheel airbag technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Switch, multifunction and shift paddles, see HG61 FG35 For vehicles with M leather steering wheel |
S710A=No |
||||||||
| For vehicles with Steering wheel heater and Driving assistant professional |
S248A=Yes S5AUA=No |
|||||||||
| 01 | Steering wheel | 1 | 32305A8A8C5 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater and Driving assistant professional |
S248A=No S5AUA=Yes |
|||||||||
| 01 | Steering wheel | 1 | 32305A8A8C6 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater and Driving assistant professional |
S248A=No S5AUA=No |
|||||||||
| 01 | Steering wheel | 1 | 32305A8A8C4 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater and Driving assistant professional |
S248A=Yes S5AUA=Yes |
|||||||||
| 01 | Steering wheel | 1 | 32305A8A8C7 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater and Driving assistant professional |
S248A=Yes S5AUA=No |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32305A8A8E8 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Driving assistant professional |
S248A=No S5AUA=Yes |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32305A8A8E9 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Driving assistant professional |
S248A=No S5AUA=No |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32305A8A8E7 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Driving assistant professional |
S248A=Yes S5AUA=Yes |
|||||||||
| 02 | connecting line, steering wheel | 1 | 32305A8A8F0 | Shop at ECS Tuning | ||||||
| 04 | Trim, steering wheel | 1 | 32305A8A8E1 | NoS | Shop at ECS Tuning | |||||
| 05 | Trim steering wheel bottom | 1 | 32305A8A8E0 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional |
S5AUA=No |
|||||||||
| 06 | Decor trim cover, steering wheel | 1 | 32305A8A8D6 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional |
S5AUA=Yes |
|||||||||
| 06 | Decor trim cover, steering wheel | 1 | 32305A8A8D7 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific |
S230A=No |
|||||||||
| 07 | Airbag module, driver's side | 1 | 32305A250B4 | Shop at ECS Tuning | ||||||
| For vehicles with Extra package, EU-specific |
S230A=Yes |
|||||||||
| 07 | Airbag module, driver's side | 1 | 32305A250B5 | Shop at ECS Tuning | ||||||
| 08 | Torx screw, micro-encapsulated | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| 09 | Screw locking insert | 1 | 32305A638F7 | Shop at ECS Tuning | ||||||
| 10 | Set of screws | 1 | 32305A8A8E2 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G23 Convertible LCI 420i Steering wheel airbag?
- This technical diagram illustrates the Steering wheel airbag within the Steering group for the 4 Series G23 Convertible LCI 420i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Steering wheel (Part #32305A8A8C5).
- Which models use the hardware listed in this Steering wheel airbag?
- The hardware and components featured in the Steering wheel airbag are specific to the 4 Series G23 Convertible LCI 420i produced during 2025. These technical specifications ensure that parts like the Steering wheel (32305A8A8C5) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering wheel airbag assembly?
- Each item in the Steering wheel airbag corresponds to the numbered list below the illustration. For the 4 Series G23 Convertible LCI 420i, you can identify the Steering wheel by locating its position on the schematic, which then links to the official BMW part number 32305A8A8C5 for the Steering section.
