Airbag sports steering wheel for BMW MINI Cabrio F67 JCW (2025)

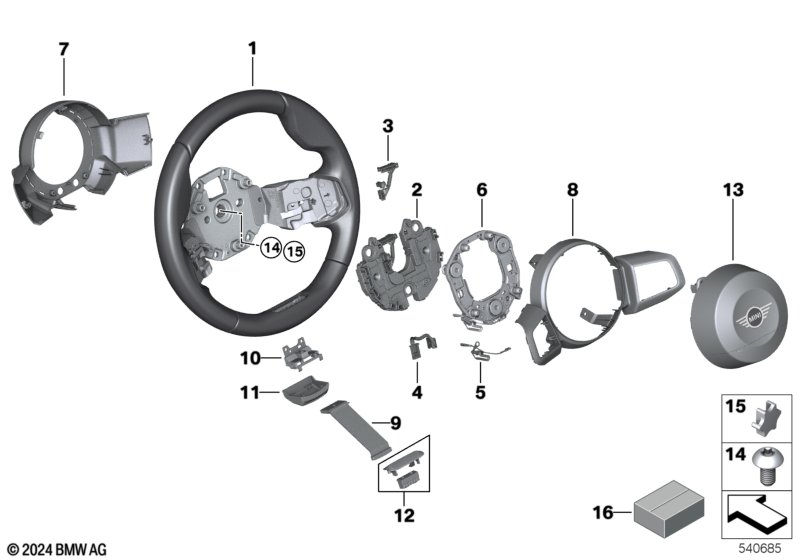

This Airbag sports steering wheel technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F67 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sports steering wheel or JCW steering wheel |
S2XHA=Yes S2XKA=Yes |
||||||||
| 01 | JCW sports steering wheel | 1 | 32305A6CB26 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant Plus and Preparation Driving Assistant Plus |
S5ATA=Yes S9QVA=Yes |
|||||||||
| 02 | Steering wheel electronic control | 1 | 32305B4FF40 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant Plus and Preparation Driving Assistant Plus |
S5ATA=Yes S9QVA=No |
|||||||||
| 02 | Steering wheel electronic control | 1 | 32305B4FF40 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant Plus and Preparation Driving Assistant Plus |
S5ATA=No S9QVA=Yes |
|||||||||
| 02 | Steering wheel electronic control | 1 | 32305B4FF40 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant Plus and Preparation Driving Assistant Plus |
S5ATA=No S9QVA=No |
|||||||||
| 02 | Steering wheel electronic control | 1 | 32305B4FF39 | Shop at ECS Tuning | ||||||
| 03 | connecting line, steering wheel | 1 | 32305A41AD8 | Shop at ECS Tuning | ||||||
| 04 | Connecting line multifunction | 1 | 32305A6CB20 | Shop at ECS Tuning | ||||||
| 05 | Ground cable | 1 | 32305A6CB22 | Shop at ECS Tuning | ||||||
| 06 | Horn plate | 1 | 32305A6CB27 | Shop at ECS Tuning | ||||||
| 07 | Cover for steering wheel, rear | 1 | 32305A6CB33 | Shop at ECS Tuning | ||||||
| 08 | Decor trim cover, steering wheel | 1 | 32305A6CB29 | NoS | Shop at ECS Tuning | |||||
| 09 | Steering wheel, strap | 1 | 32305A6CB38 | NoS | Shop at ECS Tuning | |||||
| 10 | Holder, steering wheel, strap | 1 | 32305A6CB39 | NoS | Shop at ECS Tuning | |||||
| 11 | Trim, steering wheel, strap, upper | 1 | 32305A6CB36 | NoS | Shop at ECS Tuning | |||||
| 12 | Kit, trim, steering wheel, strap | 1 | 32305A6CB35 | NoS | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version China and Extra package, EU-specific and Country-specific equipment Taiwan 04825 |
L802A=No L8AAA=No S230A=No S8LTA=No |
|||||||||
| 13 | Airbag unit | 1 | 32305A1BE32 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version China and Extra package, EU-specific and Country-specific equipment Taiwan 04825 |
L802A=Yes L8AAA=No S230A=No S8LTA=No |
|||||||||
| 13 | Airbag unit | 1 | 32305A1BE33 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version China and Extra package, EU-specific and Country-specific equipment Taiwan 04825 |
L802A=No L8AAA=Yes S230A=Yes S8LTA=Yes |
|||||||||
| 13 | Airbag unit | 1 | 32305A1BE31 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version China and Extra package, EU-specific and Country-specific equipment Taiwan 04825 |
L802A=No L8AAA=Yes S230A=Yes S8LTA=No |
|||||||||
| 13 | Airbag unit | 1 | 32305A1BE31 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version China and Extra package, EU-specific and Country-specific equipment Taiwan 04825 |
L802A=No L8AAA=Yes S230A=No S8LTA=Yes |
|||||||||
| 13 | Airbag unit | 1 | 32305A1BE31 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version China and Extra package, EU-specific and Country-specific equipment Taiwan 04825 |
L802A=No L8AAA=Yes S230A=No S8LTA=No |
|||||||||
| 13 | Airbag unit | 1 | 32305A1BE31 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version China and Extra package, EU-specific and Country-specific equipment Taiwan 04825 |
L802A=No L8AAA=No S230A=Yes S8LTA=Yes |
|||||||||
| 13 | Airbag unit | 1 | 32305A1BE31 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version China and Extra package, EU-specific and Country-specific equipment Taiwan 04825 |
L802A=No L8AAA=No S230A=Yes S8LTA=No |
|||||||||
| 13 | Airbag unit | 1 | 32305A1BE31 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea and National version China and Extra package, EU-specific and Country-specific equipment Taiwan 04825 |
L802A=No L8AAA=No S230A=No S8LTA=Yes |
|||||||||
| 13 | Airbag unit | 1 | 32305A1BE31 | Shop at ECS Tuning | ||||||
| 14 | Torx screw, micro-encapsulated | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| Quantity 1 contains 10 units | ||||||||||
| 15 | Screw locking insert | 1 | 32305A638F7 | Shop at ECS Tuning | ||||||
| 16 | Set of screws | 1 | 32305A6CB23 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
