Steering column man.adjust./Mount. parts for BMW 5 Series G60 Sedan 520i (2025)

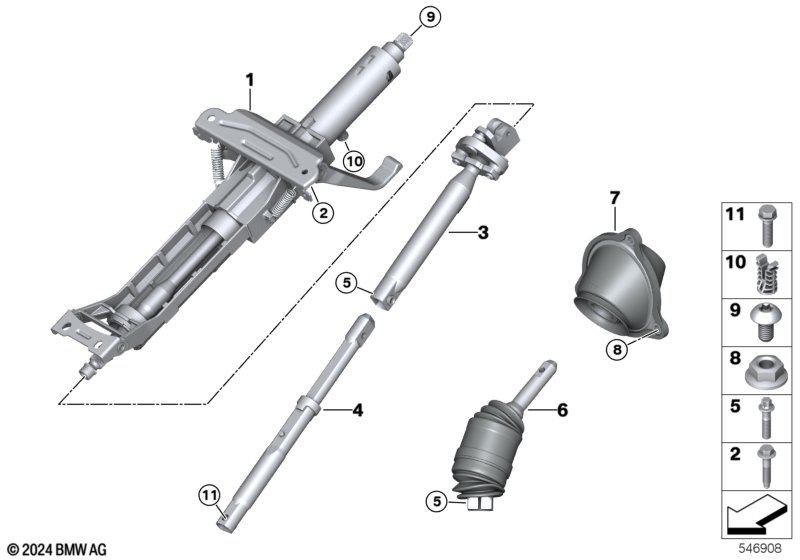

This Steering column man.adjust./Mount. parts technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Manual steering column adjustment | 1 | 32305A9D958 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt | 8X45 ZNS3 | 4 | 32306894140 | Shop at ECS Tuning | |||||
| 03 | Steering spindle upper | 1 | 32305A819F7 | NoS | Shop at ECS Tuning | |||||
| 04 | Steering spindle | 1 | 32305A76505 | Shop at ECS Tuning | ||||||
| 05 | Torx bolt | M8X33 | 3 | 32306778609 | $0.67 | Shop at ECS Tuning | ||||
| 06 | Swivel joint | 1 | 32305A22605 | Shop at ECS Tuning | ||||||
| 07 | Steering shaft sleeve | 1 | 32306898712 | Shop at ECS Tuning | ||||||
| 08 | Hex nut | M6-8-SC-ZNNIV S | 3 | 34506859776 | Shop at ECS Tuning | |||||
| 09 | Torx screw, micro-encapsulated | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| 10 | Securing pin | 1 | 32305A11628 | Shop at ECS Tuning | ||||||
| 11 | Hexagon bolt | M8X1X35 | 1 | 07148859816 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 520i Steering column man.adjust./Mount. parts?
- This technical diagram illustrates the Steering column man.adjust./Mount. parts within the Steering group for the 5 Series G60 Sedan 520i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Manual steering column adjustment (Part #32305A9D958).
- Which models use the hardware listed in this Steering column man.adjust./Mount. parts?
- The hardware and components featured in the Steering column man.adjust./Mount. parts are specific to the 5 Series G60 Sedan 520i produced during 2025. These technical specifications ensure that parts like the Manual steering column adjustment (32305A9D958) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering column man.adjust./Mount. parts assembly?
- Each item in the Steering column man.adjust./Mount. parts corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 520i, you can identify the Manual steering column adjustment by locating its position on the schematic, which then links to the official BMW part number 32305A9D958 for the Steering section.
