Final drive housing cover/suspension for BMW 3 Series E21 323i (1982)

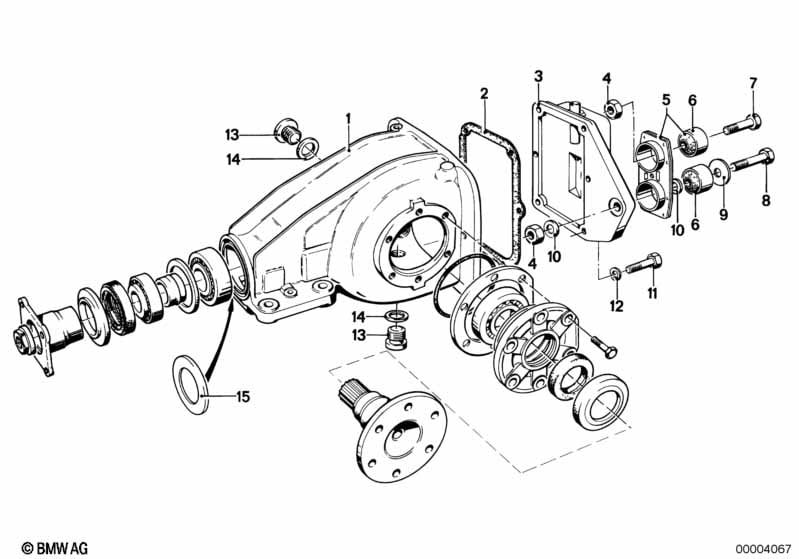

This Final drive housing cover/suspension technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission housing | 1 | 08/1978 | 33111208948 | $309.13 | ENDED | Shop at ECS Tuning | |||
| 02 | Gasket Asbestos Free | 1 | 33113604117 | $3.05 | Shop at ECS Tuning | |||||
| 03 | Transmission cover | 1 | 33111204899 | $64.57 | ENDED | Shop at ECS Tuning | ||||
| 04 | Self-locking hex nut | M12X1,5-10-PHR | 2 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Support | 1 | 33171123788 | $73.71 | ENDED | Shop at ECS Tuning | ||||
| 06 | Rubber Mounting | 2 | 33171117282 | $26.05 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M12X1,5X65 | 1 | 07119914647 | $1.54 | ENDED | Shop at ECS Tuning | |||
| 08 | Hex bolt | M12X1,5X100 | 1 | 07119914678 | $2.35 | Shop at ECS Tuning | ||||
| 09 | Circlip | 1 | 33171116516 | ENDED | Shop at ECS Tuning | |||||
| 10 | Washer | 10-200 HV-ZNNIV | 4 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M10X45 | 6 | 07119913855 | $0.88 | ENDED | Shop at ECS Tuning | |||
| 12 | Wave washer | B10-ZNS3 | 6 | 07119904463 | Shop at ECS Tuning | |||||
| 13 | Screw plug with O-ring | M22X1,5-ZNS3 | 2 | 33117525064 | $3.91 | Shop at ECS Tuning | ||||
| 14 | Gasket ring | A22X27-AL | 2 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 15 | Ring | 1 | 33121204444 | $5.90 | Shop at ECS Tuning |
