Limited slip diff.unit-single parts for BMW 3 Series E21 320 (1977)

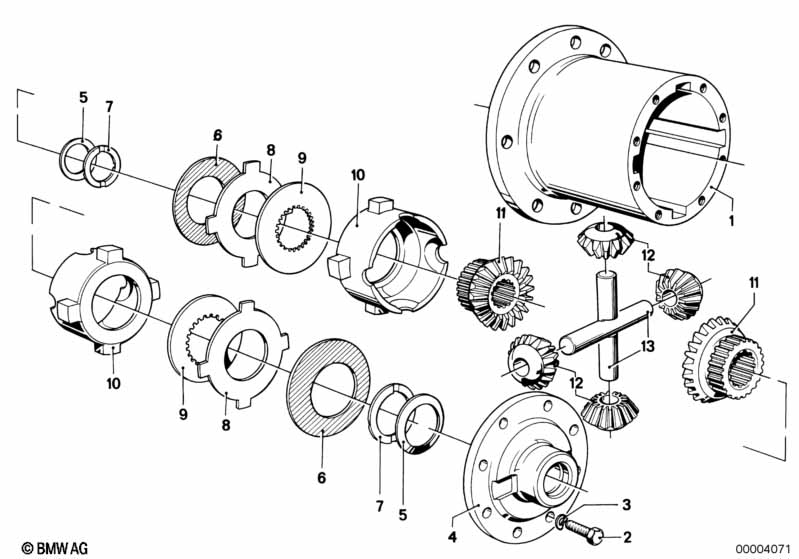

This Limited slip diff.unit-single parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ZF.-Nr. 4061 604 165 = 3314 1 206 800 | |||||||||
| 01 | Differential housing | 1 | 33141206911 | $422.96 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fillister-head screw | M8X18 | 8 | 07119919636 | ENDED | Shop at ECS Tuning | ||||
| 04 | Housing cover | 1 | 33141206916 | $272.30 | ENDED | Shop at ECS Tuning | ||||
| 05 | Diaphragm spring | 2 | 33141206912 | ENDED | Shop at ECS Tuning | |||||
| 06 | Diaphragm spring | 2 | 33141207307 | $21.32 | Shop at ECS Tuning | |||||
| 07 | Stop disk | 2 | 33141207637 | ENDED | Shop at ECS Tuning | |||||
| 08 | Outer disc | 1,90MM | 2 | 33141203803 | $35.00 | Shop at ECS Tuning | ||||
| 08 | Outer disc | 2,00MM | 2 | 33141203804 | $35.00 | ENDED | Shop at ECS Tuning | |||
| 08 | Outer disc | 2,10MM | 2 | 33141203805 | $35.42 | ENDED | Shop at ECS Tuning | |||
| 09 | Inner disc | 2 | 33141203806 | $56.47 | Shop at ECS Tuning | |||||
| 10 | Compression ring | 2 | 33141207639 | $131.03 | ENDED | Shop at ECS Tuning | ||||
| 11 | Side gear | 2 | 33141206915 | ENDED | Shop at ECS Tuning | |||||
| 12 | Bevel gear | 4 | 33141203808 | $85.77 | ENDED | Shop at ECS Tuning | ||||
| 13 | Bevel mate shaft | 2 | 33141203809 | $76.17 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
