Drive flange suspension/gasket for BMW 3 Series E21 320 (1979)

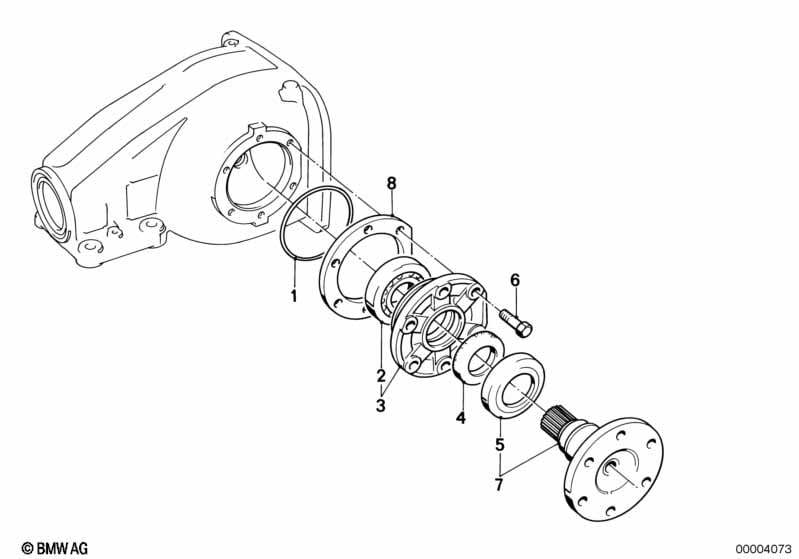

This Drive flange suspension/gasket technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | O-ring | 81X2 | 2 | 08/1978 | 33113604119 | $3.06 | ENDED | Shop at ECS Tuning | ||
| 02 | Tapered roller bearing | 41,2X73,4X19,5 | 2 | 08/1978 | 10/1982 | 33131213892 | $68.01 | ENDED | Shop at ECS Tuning | |
| 03 | Bearing cover | 2 | 08/1978 | 33111207224 | $81.19 | ENDED | Shop at ECS Tuning | |||
| 04 | Shaft seal | 54X38X10 | 2 | 08/1978 | 33121205302 | Shop at ECS Tuning | ||||
| 05 | Dustcover plate | 2 | 08/1978 | 33131207389 | $29.70 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex bolt | M8X25-8.8-ZNNIV | X | 08/1978 | 07119906181 | $0.55 | Shop at ECS Tuning | |||
| 06 | Hex bolt | M8X25 | X | 08/1978 | 07119913653 | $0.47 | Shop at ECS Tuning | |||
| 07 | Drive flange output | 2 | 08/1978 | 33131207232 | $66.78 | Shop at ECS Tuning | ||||
| 08 | Shim | 1,150MM | 2 | 08/1978 | 33131207844 | $8.11 | ENDED | Shop at ECS Tuning | ||
| 08 | Shim | 1,200MM | 2 | 08/1978 | 33131207845 | $8.11 | Shop at ECS Tuning | |||
| 08 | Shim | 1,200MM | 2 | 08/1978 | 33131207846 | $8.11 | ENDED | Shop at ECS Tuning | ||
| 08 | Shim | 1,300MM | 2 | 08/1978 | 33131207847 | $8.11 | ENDED | Shop at ECS Tuning | ||
| 08 | Shim | 1,350MM | 2 | 08/1978 | 33131207848 | $8.11 | ENDED | Shop at ECS Tuning | ||
| 08 | Shim | 1,400MM | 2 | 08/1978 | 33131207849 | $8.11 | Shop at ECS Tuning | |||
| 08 | Shim | 1,450MM | 2 | 08/1978 | 33131207850 | $8.11 | Shop at ECS Tuning | |||
| 08 | Shim | 1,500MM | 2 | 08/1978 | 33131207851 | $8.11 | Shop at ECS Tuning | |||
| 08 | Shim | 1,550MM | 2 | 08/1978 | 33131207852 | $8.11 | Shop at ECS Tuning | |||
| 08 | Shim | 1,600MM | 2 | 08/1978 | 33131207853 | $8.11 | Shop at ECS Tuning | |||
| 08 | Shim | 1,650MM | 2 | 08/1978 | 33131207854 | $8.11 | ENDED | Shop at ECS Tuning | ||
| 08 | Shim | 1,700MM | 2 | 08/1978 | 33131207855 | $13.06 | ENDED | Shop at ECS Tuning | ||
| 08 | Shim | 1,750MM | 2 | 08/1978 | 33131207856 | ENDED | Shop at ECS Tuning | |||
| 08 | Shim | 1,800MM | 2 | 08/1978 | 33131207857 | ENDED | Shop at ECS Tuning | |||
| 08 | Shim | 1,850MM | 2 | 08/1978 | 33131207858 | $8.11 | ENDED | Shop at ECS Tuning | ||
| 08 | Shim | 1,900MM | 2 | 08/1978 | 33131207859 | $8.11 | ENDED | Shop at ECS Tuning | ||
| 08 | Shim | 1,950MM | 2 | 08/1978 | 33131207860 | $13.06 | ENDED | Shop at ECS Tuning | ||
| 08 | Shim | 2,000MM | 2 | 08/1978 | 33131207861 | $13.06 | Shop at ECS Tuning | |||
| 08 | Shim | 2,050MM | 2 | 08/1978 | 33131207862 | $13.06 | ENDED | Shop at ECS Tuning | ||
| 08 | Shim | 2,100MM | 2 | 08/1978 | 33131207863 | $13.06 | Shop at ECS Tuning | |||
| 08 | Shim | 2,150MM | 2 | 08/1978 | 33131207864 | $7.92 | ENDED | Shop at ECS Tuning | ||
| 08 | Shim | 2,200MM | 2 | 08/1978 | 33131207865 | ENDED | Shop at ECS Tuning | |||
| 08 | Shim | 2,250MM | 2 | 08/1978 | 33131207866 | $7.92 | ENDED | Shop at ECS Tuning | ||
| 08 | Shim | 2,300MM | 2 | 08/1978 | 33131207867 | ENDED | Shop at ECS Tuning | |||
| 08 | Shim | 2,350MM | 2 | 08/1978 | 33131207868 | $37.39 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Drive flange suspension/gasket?
- This technical diagram illustrates the Drive flange suspension/gasket within the Rear Axle group for the 3 Series E21 320 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the O-ring (Part #33113604119).
- Which models use the hardware listed in this Drive flange suspension/gasket?
- The hardware and components featured in the Drive flange suspension/gasket are specific to the 3 Series E21 320 produced during 1979. These technical specifications ensure that parts like the O-ring (33113604119) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Drive flange suspension/gasket assembly?
- Each item in the Drive flange suspension/gasket corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the O-ring by locating its position on the schematic, which then links to the official BMW part number 33113604119 for the Rear Axle section.
