Differential-drive/output for BMW 6 Series E24 628CSi (1982)

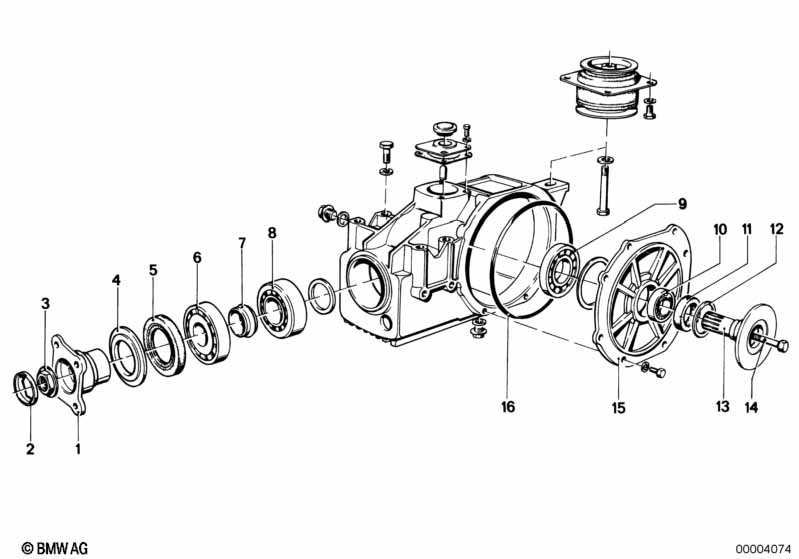

This Differential-drive/output technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drive flange | D=84MM | 1 | 09/1976 | 05/1982 | 33121213946 | ENDED | Shop at ECS Tuning | ||
| 02 | Securing plate | 1 | 05/1982 | 23211490120 | $1.43 | Shop at ECS Tuning | ||||
| 03 | Collar nut | M20X1,5 | 1 | 05/1982 | 33121200258 | $8.56 | Shop at ECS Tuning | |||
| 04 | Dustcover plate | 81MM | 1 | 05/1982 | 33121200284 | $2.38 | Shop at ECS Tuning | |||
| 05 | Shaft seal | 45X75X10 AW 188 | 1 | 31507609535 | Shop at ECS Tuning | |||||
| 06 | Tapered roller bearing | 31,7X73,0X29,3 | 1 | 05/1982 | 33121204312 | Shop at ECS Tuning | ||||
| 07 | Clamping bush | 1 | 05/1982 | 33121744368 | $9.14 | Shop at ECS Tuning | ||||
| 08 | Tapered roller bearing | 1 | 05/1982 | 33121204315 | Shop at ECS Tuning | |||||
| 09 | Tapered roller bearing | 2 | 05/1982 | 33131204568 | Shop at ECS Tuning | |||||
| 11 | Shaft seal | 2 | 05/1982 | 33121210295 | Shop at ECS Tuning | |||||
| 12 | Dustcover plate | 61MM | 2 | 05/1982 | 33413704139 | $1.02 | ENDED | Shop at ECS Tuning | ||
| 13 | Drive flange output | 2 | 09/1976 | 05/1982 | 33131206336 | $56.64 | ENDED | Shop at ECS Tuning | ||
| 15 | Housing cover | 1 | 05/1982 | 33111206165 | ENDED | Shop at ECS Tuning | ||||
| 16 | O-ring | 1 | 05/1982 | 33113704163 | $5.14 | Shop at ECS Tuning | ||||
| 16 | O-ring | 1 | 05/1982 | 33111204119 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
