Differential-limited slip diff.unit for BMW 6 Series E24 628CSi (1982)

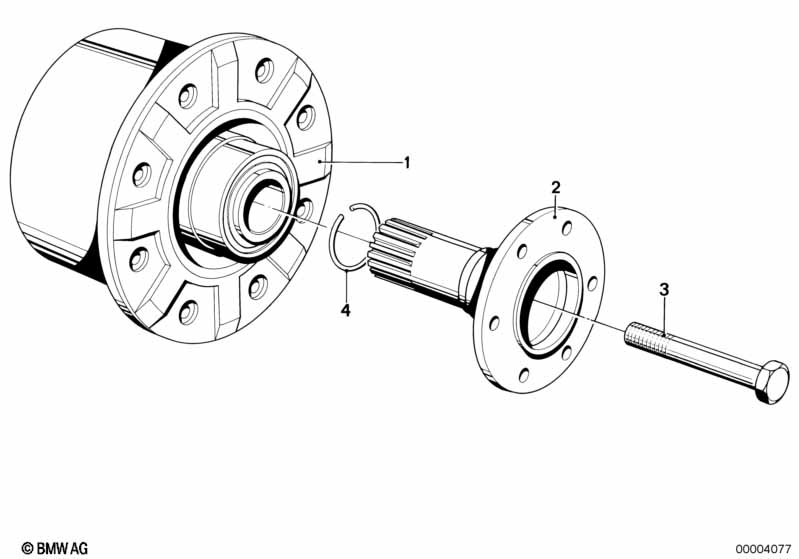

This Differential-limited slip diff.unit technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Drive flange output | 2 | 09/1976 | 05/1982 | 33131206336 | $56.64 | ENDED | Shop at ECS Tuning | ||

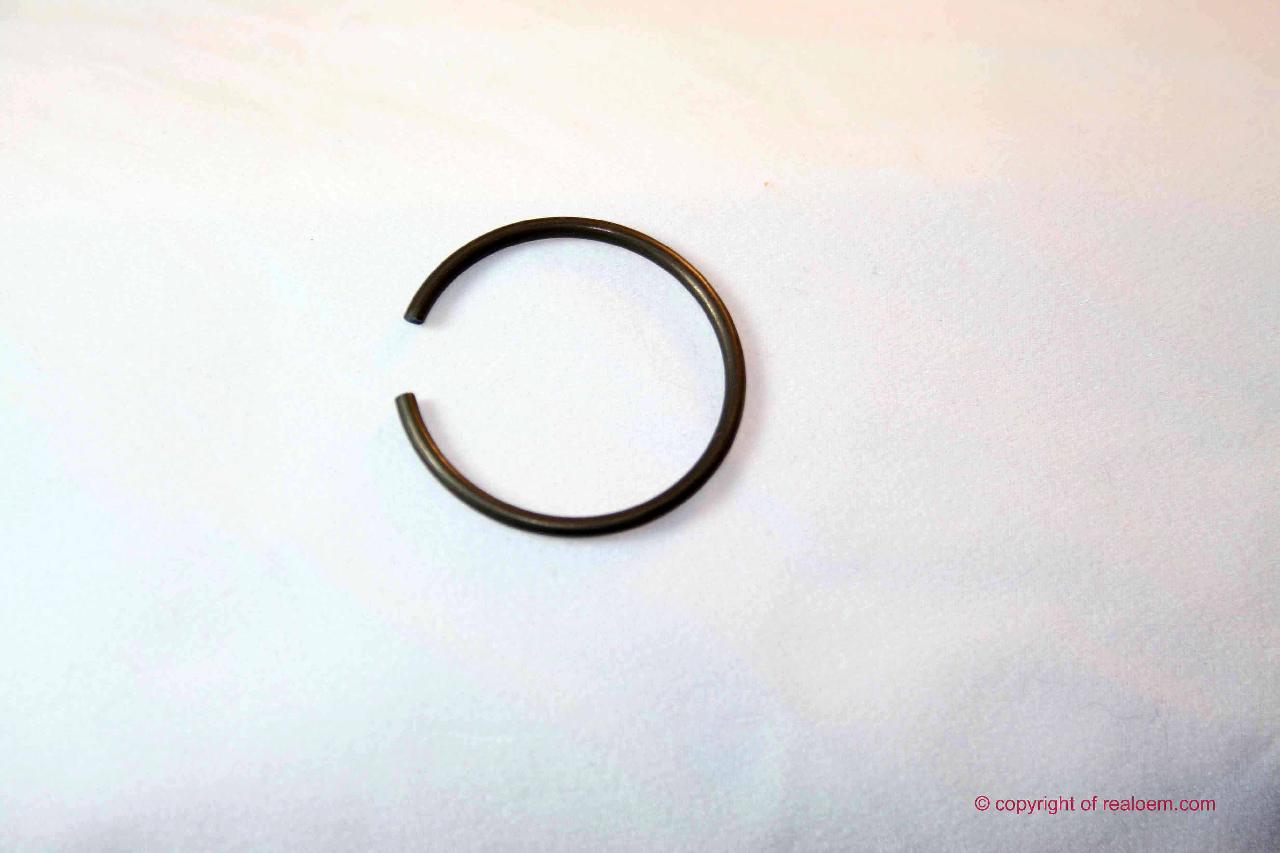

| 04 | Lock Ring | 2 | 09/1976 | 05/1982 | 33131207280 | $0.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
