Limited slip diff.unit-single parts for BMW 6 Series E24 633CSi (1984)

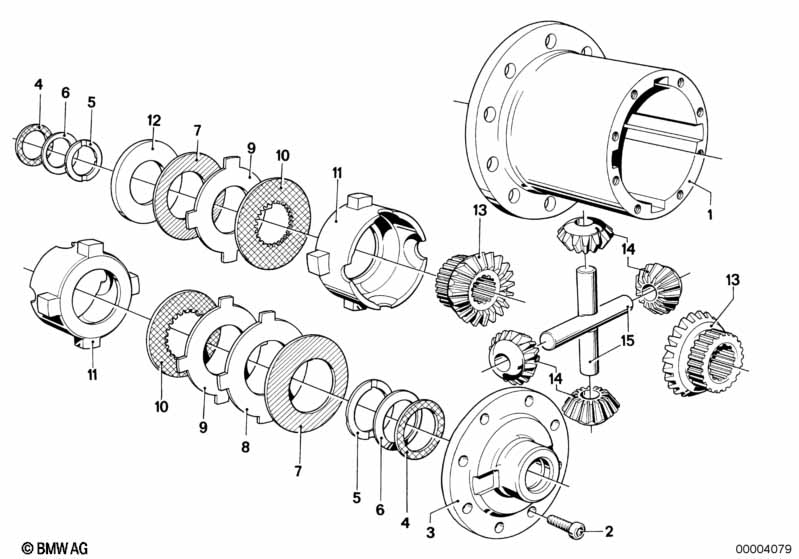

This Limited slip diff.unit-single parts technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ZF.-Nr.4061006173/4061606266 = 33 14 1 2 06 406 |
|||||||||
| 01 | Differential housing | 1 | 33141206917 | ENDED | Shop at ECS Tuning | |||||
| 02 | Fillister-head screw | M8X16 UFK | 8 | 33147740005 | $2.24 | Shop at ECS Tuning | ||||
| 03 | Housing cover | 1 | 33141206923 | ENDED | Shop at ECS Tuning | |||||
| 04 | Stop disk | 2,20MM | 2 | 33141201931 | ENDED | Shop at ECS Tuning | ||||
| 04 | Stop disk | 2,15MM | 2 | 33141201932 | ENDED | Shop at ECS Tuning | ||||
| 04 | Stop disk | 2,10MM | 2 | 33141201933 | ENDED | Shop at ECS Tuning | ||||
| 04 | Stop disk | 2,05MM | 2 | 33141201934 | ENDED | Shop at ECS Tuning | ||||
| 04 | Stop disk | 2,00MM | 2 | 33141201935 | ENDED | Shop at ECS Tuning | ||||
| 04 | Stop disk | 1,95MM | 2 | 33141201936 | ENDED | Shop at ECS Tuning | ||||
| 04 | Stop disk | 1,90MM | 2 | 33141201937 | ENDED | Shop at ECS Tuning | ||||
| 04 | Stop disk | 1,85MM | 2 | 33141201938 | ENDED | Shop at ECS Tuning | ||||
| 04 | Stop disk | 1,80MM | 2 | 33141201939 | ENDED | Shop at ECS Tuning | ||||
| 04 | Stop disk | 2,25MM | 2 | 33141203791 | ENDED | Shop at ECS Tuning | ||||
| 04 | Stop disk | 2,30MM | 2 | 33141203792 | ENDED | Shop at ECS Tuning | ||||
| 05 | Stop disk | 2 | 33141206919 | ENDED | Shop at ECS Tuning | |||||
| 06 | Diaphragm spring | 2 | 33141206918 | $8.41 | Shop at ECS Tuning | |||||
| 07 | Diaphragm spring | 2 | 33141204367 | ENDED | Shop at ECS Tuning | |||||
| 08 | Outer disc | 1,40MM | 1 | 33141203794 | $46.41 | Shop at ECS Tuning | ||||
| 09 | Outer disc | 1,90MM | 2 | 33141203795 | ENDED | Shop at ECS Tuning | ||||
| 09 | Outer disc | 2,00MM | 2 | 33141203796 | ENDED | Shop at ECS Tuning | ||||
| 09 | Outer disc | 2,10MM | 2 | 33141203797 | ENDED | Shop at ECS Tuning | ||||
| 10 | Inner disc | 2 | 33141210626 | $53.61 | Shop at ECS Tuning | |||||
| 11 | Compression ring | 2 | 33141206909 | $179.68 | ENDED | Shop at ECS Tuning | ||||
| 12 | Shim | 1 | 33141206921 | $5.74 | ENDED | Shop at ECS Tuning | ||||
| 13 | Side gear | 2 | 33141206922 | ENDED | Shop at ECS Tuning | |||||
| 13 | Side gear | 2 | 33141213124 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bevel gear | 4 | 33141210624 | ENDED | Shop at ECS Tuning | |||||
| 14 | Bevel gear | 4 | 33141201948 | ENDED | Shop at ECS Tuning | |||||
| 15 | Bevel mate shaft | 2 | 33141203801 | ENDED | Shop at ECS Tuning | |||||
