Final drive housing cover/trigger cntct for BMW 7 Series E23 735i (1986)

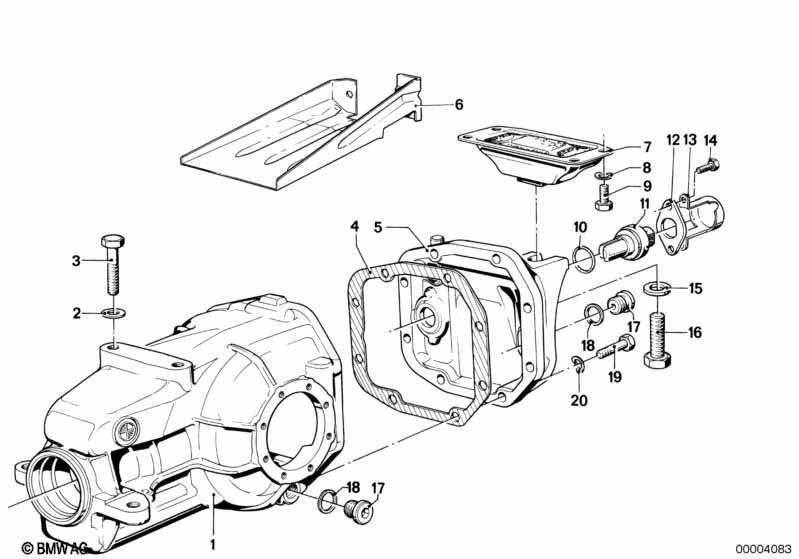

This Final drive housing cover/trigger cntct technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission housing | 1 | 09/1981 | 33111207770 | ENDED | Shop at ECS Tuning | ||||
| 02 | Washer | 12-300 HV-ZNS3 | 4 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 02 | Washer | A12.5X30X3MM | 4 | 33331120662 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 03 | Hex bolt | M12X1,5X25 | 4 | 07119911694 | $0.82 | Shop at ECS Tuning | ||||
| 04 | Gasket Asbestos Free | 1 | 33111206069 | $2.41 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cover | 1 | 09/1981 | 33111207978 | $89.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Saudi Arabia version |
=Yes |
|||||||||
| 06 | Protection plate | 1 | 33171127553 | $12.28 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rubber Mounting | 1 | 33171118036 | ENDED | Shop at ECS Tuning | |||||
| 07 | Rubber Mounting | 1 | 33171125290 | $193.40 | Shop at ECS Tuning | |||||
| 09 | Hex bolt | M10X32 | 4 | 09/1980 | 33171125192 | $1.14 | ENDED | Shop at ECS Tuning | ||
| 09 | Hex bolt | M10X20 | 4 | 09/1980 | 33331132413 | $1.11 | Shop at ECS Tuning | |||
| 10 | O-ring | 1 | 33111210739 | Shop at ECS Tuning | ||||||
| 11 | Pulse generator, speedometer | 1 | 62161369906 | Shop at ECS Tuning | ||||||
| 12 | Bracket | 1 | 33111206076 | $2.65 | Shop at ECS Tuning | |||||
| 13 | Securing plate | 1 | 62161365817 | $15.34 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | M6X10 | 2 | 07119913522 | ENDED | Shop at ECS Tuning | ||||
| 15 | Washer | 13X30X4MM | 1 | 33171125439 | $0.73 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M12X1,5X45 10.9 | 1 | 07119913718 | ENDED | Shop at ECS Tuning | ||||
| 17 | Screw plug with O-ring | M22X1,5-ZNS3 | 2 | 33117525064 | $3.91 | Shop at ECS Tuning | ||||
| 18 | Gasket ring | A22X27-AL | 2 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 19 | Hex bolt | M10X30-10.9ZNS3 | 8 | 07119902912 | Shop at ECS Tuning | |||||
| 20 | Wave washer | B10-ZNS3 | 8 | 07119904463 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i Final drive housing cover/trigger cntct?
- This technical diagram illustrates the Final drive housing cover/trigger cntct within the Rear Axle group for the 7 Series E23 735i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Transmission housing (Part #33111207770).
- Which models use the hardware listed in this Final drive housing cover/trigger cntct?
- The hardware and components featured in the Final drive housing cover/trigger cntct are specific to the 7 Series E23 735i produced during 1986. These technical specifications ensure that parts like the Transmission housing (33111207770) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Final drive housing cover/trigger cntct assembly?
- Each item in the Final drive housing cover/trigger cntct corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Transmission housing by locating its position on the schematic, which then links to the official BMW part number 33111207770 for the Rear Axle section.
