Shim, input for BMW 7 Series E23 735i (1985)

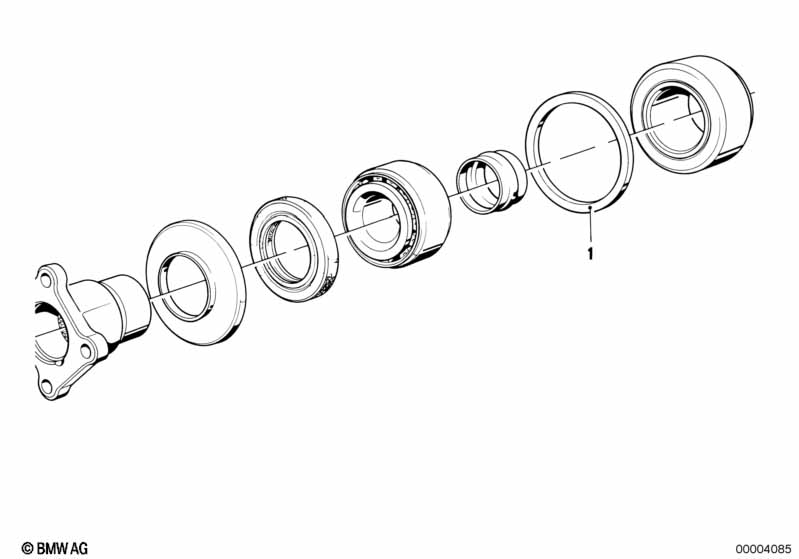

This Shim, input technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spacer rings set | 3,695MM-3,785MM | 1 | 33129065175 | $36.42 | Shop at ECS Tuning | ||||
| 01 | Spacer rings set | 3,795MM-3,955MM | 1 | 33129065176 | $36.42 | Shop at ECS Tuning | ||||
| 01 | Spacer rings set | 3,985MM-4,285MM | 1 | 33129065177 | $36.42 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i Shim, input?
- This technical diagram illustrates the Shim, input within the Rear Axle group for the 7 Series E23 735i produced during 1985. It provides a detailed exploded view of the components, identifying key parts such as the Spacer rings set (Part #33129065175).
- Which models use the hardware listed in this Shim, input?
- The hardware and components featured in the Shim, input are specific to the 7 Series E23 735i produced during 1985. These technical specifications ensure that parts like the Spacer rings set (33129065175) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Shim, input assembly?
- Each item in the Shim, input corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Spacer rings set by locating its position on the schematic, which then links to the official BMW part number 33129065175 for the Rear Axle section.
