Drive flange suspension/gasket for BMW 7 Series E23 735i (1989)

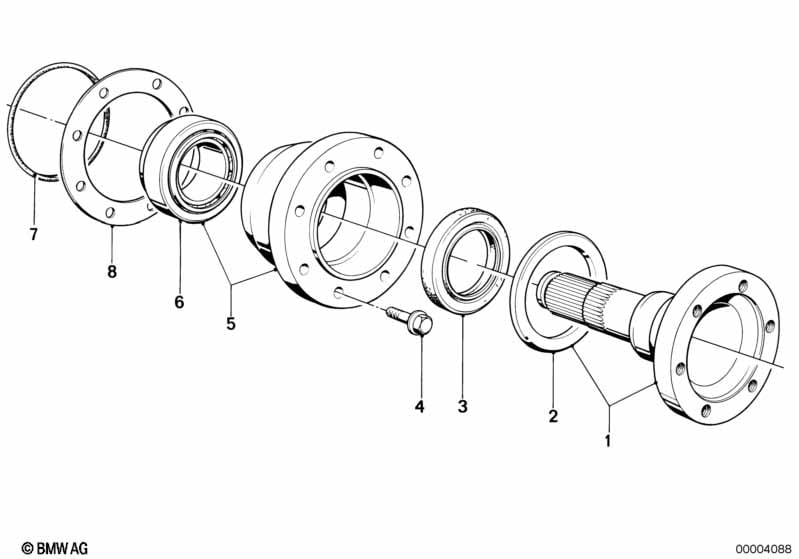

This Drive flange suspension/gasket technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drive flange | 2 | 33131206839 | $101.28 | ENDED | Shop at ECS Tuning | ||||
| 02 | Dust protection | 2 | 33131204714 | ENDED | Shop at ECS Tuning | |||||
| 03 | Shaft seal | 76X50X10 | 2 | 33101214071 | $21.02 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex bolt | M8X25 | X | 07119913653 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Transmission cover | 2 | 33111205749 | $81.51 | Shop at ECS Tuning | |||||
| 05 | Transmission cover | 2 | 33111214066 | $149.03 | ENDED | Shop at ECS Tuning | ||||
| 07 | O-ring | D=90MM/3MM | 2 | 33111214144 | $2.16 | Shop at ECS Tuning | ||||
| 08 | Spacer rings set | 1,30MM-1,70MM | X | 33139065736 | $130.03 | Shop at ECS Tuning | ||||
| 08 | Spacer rings set | 1,75MM-1,90MM | X | 33139065737 | $112.43 | Shop at ECS Tuning |
