Crowngear set/differential case for BMW 3 Series E21 316 (1977)

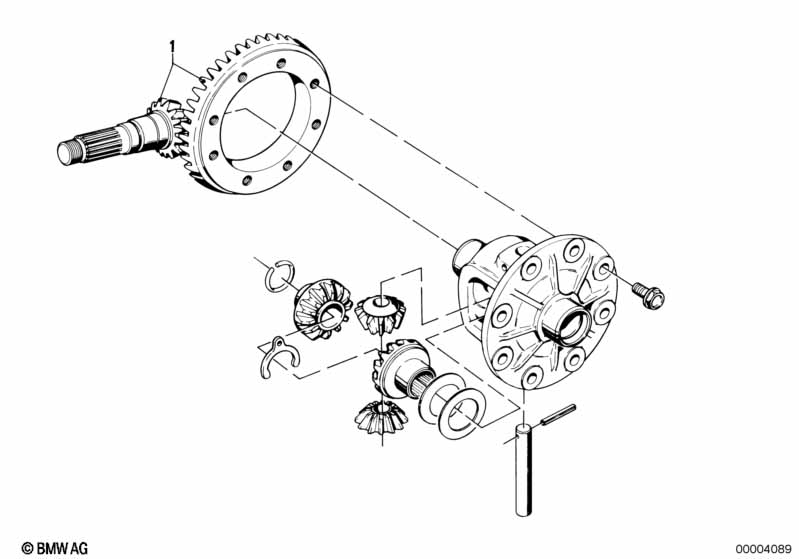

This Crowngear set/differential case technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crowngear set | I=38:9=4,22 | 1 | 33121209084 | $705.87 | ENDED | Shop at ECS Tuning | |||
| 01 | Crowngear set | I=38:8=4,75 | 1 | 33121209086 | Shop at ECS Tuning | |||||
| 01 | Crowngear set | I=35:7=5,00 | 1 | 33121209087 | ENDED | Shop at ECS Tuning | ||||
| 01 | Crowngear set | I=41:7=5,85 | 1 | 33121209088 | +core | Shop at ECS Tuning | ||||
| 01 | Crowngear set | I=37:7=5,29 | 1 | 33121209864 | ENDED | Shop at ECS Tuning | ||||
| 01 | Crowngear set | I=35:8=4,37 | 1 | 33121209085 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Drive flange | 16 ZÄHNE | 1 | 33121200050 | $52.73 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 316 Crowngear set/differential case?
- This technical diagram illustrates the Crowngear set/differential case within the Rear Axle group for the 3 Series E21 316 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Crowngear set (Part #33121209084).
- Which models use the hardware listed in this Crowngear set/differential case?
- The hardware and components featured in the Crowngear set/differential case are specific to the 3 Series E21 316 produced during 1977. These technical specifications ensure that parts like the Crowngear set (33121209084) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Crowngear set/differential case assembly?
- Each item in the Crowngear set/differential case corresponds to the numbered list below the illustration. For the 3 Series E21 316, you can identify the Crowngear set by locating its position on the schematic, which then links to the official BMW part number 33121209084 for the Rear Axle section.
