Final drive housing cover/trigger cntct for BMW 7 Series E23 728 (1979)

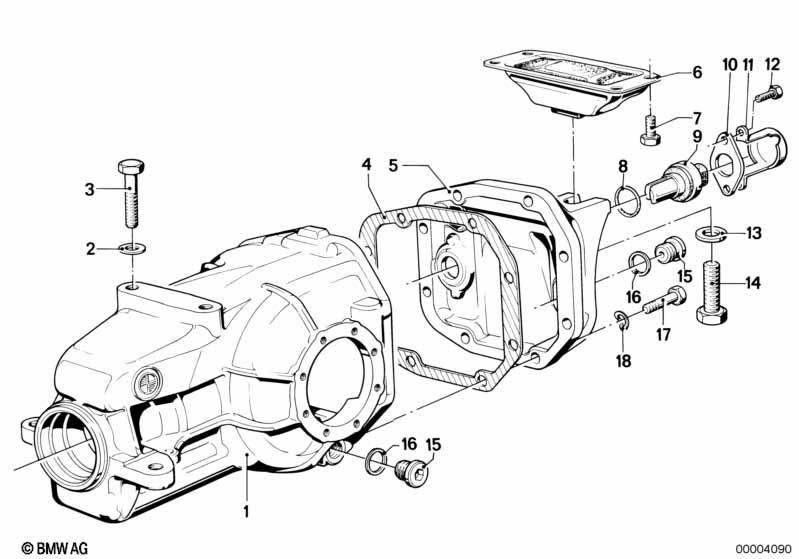

This Final drive housing cover/trigger cntct technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission housing | 1 | 09/1981 | 33111209200 | $848.16 | ENDED | Shop at ECS Tuning | |||
| 02 | Washer | 12-300 HV-ZNS3 | 4 | 09/1981 | 07119904119 | $0.25 | Shop at ECS Tuning | |||
| 02 | Washer | A12.5X30X3MM | 4 | 09/1981 | 33331120662 | $0.35 | ENDED | Shop at ECS Tuning | ||
| 03 | Hex bolt | M12X1,5X25 | 4 | 09/1981 | 07119911694 | $0.82 | Shop at ECS Tuning | |||
| 04 | Gasket Asbestos Free | 1 | 09/1981 | 33111206069 | $2.41 | ENDED | Shop at ECS Tuning | |||
| 05 | Transmission cover | 1 | 09/1981 | 33111210668 | $101.10 | ENDED | Shop at ECS Tuning | |||
| 06 | Rubber Mounting | 1 | 33171118036 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M8X20-ZNNIV SI | 4 | 07/1979 | 07119903039 | Shop at ECS Tuning | ||||
| 08 | O-ring | X | 09/1981 | 33111210739 | Shop at ECS Tuning | |||||
| 09 | Pulse generator, speedometer | 1 | 09/1981 | 62161369906 | Shop at ECS Tuning | |||||
| 10 | Bracket | 1 | 09/1981 | 33111206076 | $2.65 | Shop at ECS Tuning | ||||
| 11 | Securing plate | 1 | 09/1981 | 62161365817 | $15.34 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X10 | 2 | 09/1981 | 07119913522 | ENDED | Shop at ECS Tuning | |||
| 13 | Washer | 13X30X4MM | 1 | 09/1981 | 33171125439 | $0.73 | Shop at ECS Tuning | |||
| 14 | Hex bolt | M12X1,5X45 10.9 | 1 | 09/1981 | 07119913718 | ENDED | Shop at ECS Tuning | |||
| 15 | Screw plug with O-ring | M22X1,5-ZNS3 | 2 | 09/1981 | 33117525064 | $3.91 | Shop at ECS Tuning | |||
| 16 | Gasket ring | A22X27-AL | 2 | 09/1981 | 07119963355 | $0.36 | Shop at ECS Tuning | |||
| 17 | Hex bolt | M10X30-10.9ZNS3 | 8 | 09/1981 | 07119902912 | Shop at ECS Tuning | ||||
| 18 | Wave washer | B10-ZNS3 | 8 | 09/1981 | 07119904463 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
