Final drive, viscose differential for BMW 3 Series E30 325ix (1986)

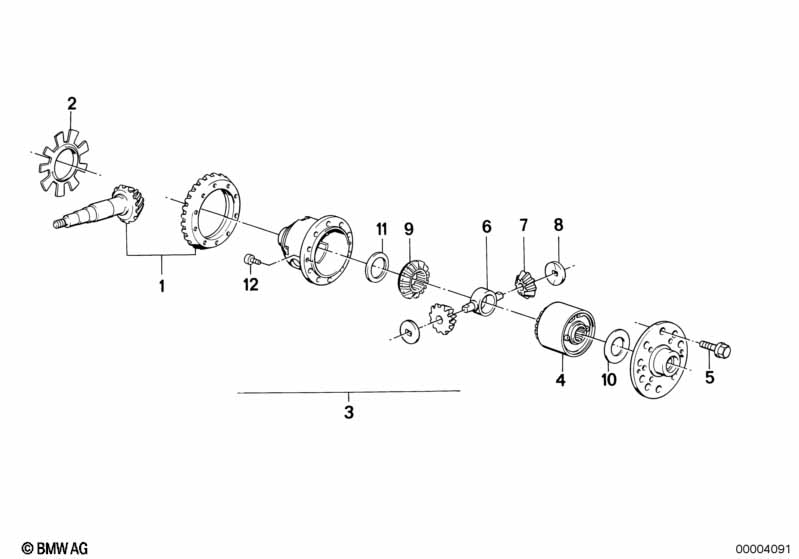

This Final drive, viscose differential technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crowngear set | I=41:11=3,73 | 1 | 10/1987 | 33121210028 | ENDED | Shop at ECS Tuning | |||
| 02 | Impulse sending wheel | 1 | 33101211644 | $3.46 | Shop at ECS Tuning | |||||
| 03 | Limited slip differential viscose | 1 | 33141211740 | $2008.80 | ENDED | Shop at ECS Tuning | ||||
| 03 | Exch. limited slip differential viscose | 1 | 33141211741 | $1434.06 | ENDED | Shop at ECS Tuning | ||||
| 04 | AT-limited slip diff.unit viscose | 1 | 33141211635 | $771.67 | ENDED | Shop at ECS Tuning | ||||
| 04 | Limited slip diff.unit viscose | 1 | 33141211799 | $1724.22 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M12X37 | X | 33121211593 | $2.46 | ENDED | Shop at ECS Tuning | |||
| 06 | Bevel gear shaft | 1 | 33141211800 | $121.64 | Shop at ECS Tuning | |||||
| 07 | Bevel gear | 2 | 33141211801 | $137.27 | ENDED | Shop at ECS Tuning | ||||
| 08 | Ball Cup | 2 | 33141211802 | $9.71 | ENDED | Shop at ECS Tuning | ||||
| 09 | Side gear | 2 | 33141211803 | $268.96 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shim | 1,40MM | 1 | 33141211810 | $10.38 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 1,45MM | 1 | 33141211811 | $10.38 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 1,50MM | 1 | 33141211812 | $10.38 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 1,55MM | 1 | 33141211813 | $10.38 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 1,60MM | 1 | 33141211814 | $15.96 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 1,65MM | 1 | 33141211815 | $15.96 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 1,70MM | 1 | 33141211816 | $15.96 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 1,75MM | 1 | 33141211817 | $15.96 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 1,80MM | 1 | 33141211818 | ENDED | Shop at ECS Tuning | ||||
| 10 | Shim | 1,85MM | 1 | 33141211819 | $15.96 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 1,90MM | 1 | 33141211820 | $19.42 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 1,95MM | 1 | 33141211821 | $19.42 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 2,00MM | 1 | 33141211822 | $19.42 | ENDED | Shop at ECS Tuning | |||
| 11 | Shim | 1,40MM | 1 | 33141211810 | $10.38 | ENDED | Shop at ECS Tuning | |||
| 12 | ISA screw | M6X16-8.8-ZNS3 | 2 | 07129905494 | $3.65 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325ix Final drive, viscose differential?
- This technical diagram illustrates the Final drive, viscose differential within the Rear Axle group for the 3 Series E30 325ix produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Crowngear set (Part #33121210028).
- Which models use the hardware listed in this Final drive, viscose differential?
- The hardware and components featured in the Final drive, viscose differential are specific to the 3 Series E30 325ix produced during 1986. These technical specifications ensure that parts like the Crowngear set (33121210028) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Final drive, viscose differential assembly?
- Each item in the Final drive, viscose differential corresponds to the numbered list below the illustration. For the 3 Series E30 325ix, you can identify the Crowngear set by locating its position on the schematic, which then links to the official BMW part number 33121210028 for the Rear Axle section.
