Drive flange suspension/gasket for BMW 6 Series E24 628CSi (1987)

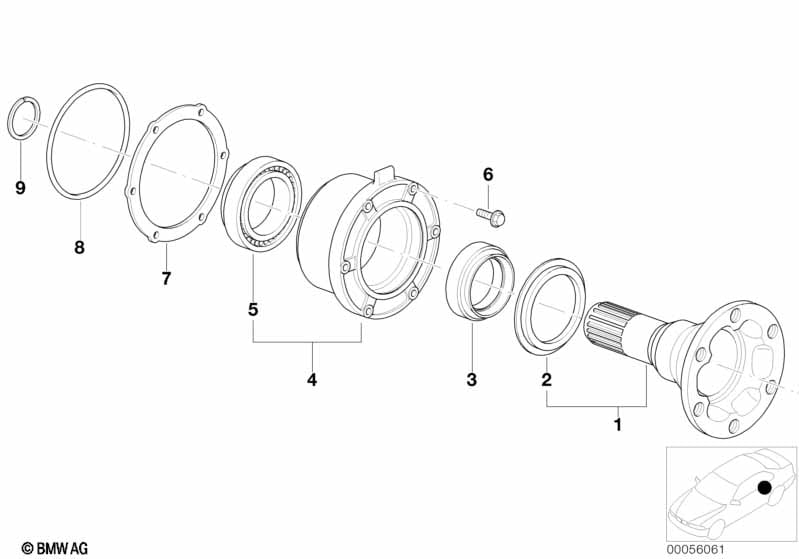

This Drive flange suspension/gasket technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drive flange output | 2 | 05/1982 | 33131214103 | $76.60 | ENDED | Shop at ECS Tuning | |||
| 01 | Drive flange output | LK=94MM/M10 | 2 | 05/1982 | 33132227265 | $99.09 | Shop at ECS Tuning | |||
| 02 | Dustcover plate | 60X84X5 | 2 | 05/1982 | 33131208006 | $1.06 | Shop at ECS Tuning | |||
| 03 | Shaft seal with lock ring | 67X44X10 | 2 | 05/1982 | 33107505602 | $16.75 | Shop at ECS Tuning | |||
| 04 | Transmission cover | 2 | 05/1982 | 33111208047 | $115.29 | Shop at ECS Tuning | ||||
| 05 | Tapered roller bearing | 46,0X75,0X18,0 | 2 | 05/1982 | 05/1987 | 33131213893 | $68.01 | ENDED | Shop at ECS Tuning | |
| 06 | Hex bolt | M8X25 | X | 05/1982 | 07119913653 | $0.47 | Shop at ECS Tuning | |||
| 06 | Hex bolt | M8X25 | X | 05/1982 | 07119913657 | $0.36 | ENDED | Shop at ECS Tuning | ||
| 07 | Spacer rings set | 1,45MM-1,69MM | X | 05/1982 | 33139065734 | $46.22 | Shop at ECS Tuning | |||
| 07 | Spacer rings set | 1,72MM-1,96MM | X | 05/1982 | 33139065735 | $46.22 | Shop at ECS Tuning | |||
| 08 | O-ring | D=90MM/3MM | 2 | 05/1982 | 33111214144 | $2.16 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 628CSi Drive flange suspension/gasket?
- This technical diagram illustrates the Drive flange suspension/gasket within the Rear Axle group for the 6 Series E24 628CSi produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Drive flange output (Part #33131214103).
- Which models use the hardware listed in this Drive flange suspension/gasket?
- The hardware and components featured in the Drive flange suspension/gasket are specific to the 6 Series E24 628CSi produced during 1987. These technical specifications ensure that parts like the Drive flange output (33131214103) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Drive flange suspension/gasket assembly?
- Each item in the Drive flange suspension/gasket corresponds to the numbered list below the illustration. For the 6 Series E24 628CSi, you can identify the Drive flange output by locating its position on the schematic, which then links to the official BMW part number 33131214103 for the Rear Axle section.
