Final drive cover/trigger contact for BMW 3 Series E30 325e (1987)

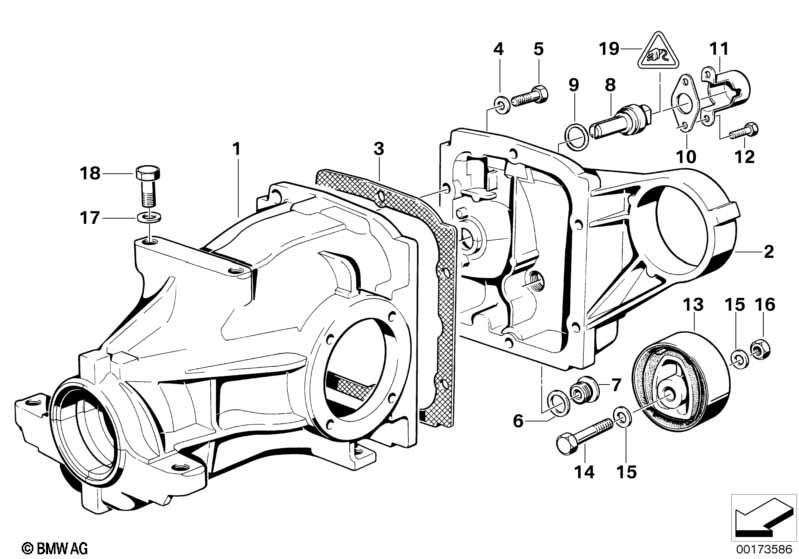

This Final drive cover/trigger contact technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | TRANSMISSION HOUSING REFER TO AT-Final drive |
|||||||||
| 02 | Transmiss. cover without rubber mounting | TYP 188 | 1 | 33111210431 | $155.50 | Shop at ECS Tuning | ||||
| 03 | Gasket Asbestos Free | TYP 188 | 1 | 33111210405 | $1.76 | Shop at ECS Tuning | ||||
| 04 | Wave washer | B10-ZNS3 | 7 | 07119904463 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M10X25 8.8 | 6 | 07119908569 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M10X75 | 2 | 07119912677 | $1.18 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M10X25-8.8 ZN | 6 | 07119913834 | $0.71 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M10X75-8.8 ZN | 2 | 07119921541 | $1.42 | ENDED | Shop at ECS Tuning | |||
| 06 | Gasket ring | A22X27-AL | 2 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Screw plug with O-ring | M22X1,5-ZNS3 | 2 | 33117525064 | $3.91 | Shop at ECS Tuning | ||||
| 09 | O-ring | 1 | 33111210739 | Shop at ECS Tuning | ||||||
| 10 | Bracket | 1 | 33111206076 | $2.65 | Shop at ECS Tuning | |||||
| 11 | Securing plate | 1 | 62161365817 | $15.34 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M6X10-8.8-ZNS3 | 2 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X10 | 2 | 07119913522 | ENDED | Shop at ECS Tuning | ||||
| 13 | Rubber Mounting | 1 | 33171135242 | $67.39 | Shop at ECS Tuning | |||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 13 | Rubber Mounting | 1 | 33171128586 | $67.52 | ENDED | Shop at ECS Tuning | ||||
| 13 | Rubber Mounting | 1 | 33171135242 | $67.39 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | M12X1,5X55 | 1 | 07119914636 | ENDED | Shop at ECS Tuning | ||||
| 15 | Washer | A13/HV-ZNS | 2 | 04/1993 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | ||
| 15 | Washer | 12-300 HV-ZNS3 | 2 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 16 | Self-locking hex nut | M12X1,5-10-PHR | 1 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| 17 | Washer | 12-300 HV-ZNS3 | 4 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Washer | A12.5X30X3MM | 4 | 33331120662 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 18 | Hex bolt | M12X1,5X25 | 4 | 07119911694 | $0.82 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
