Final drive cover/trigger contact for BMW 5 Series E34 525td (1995)

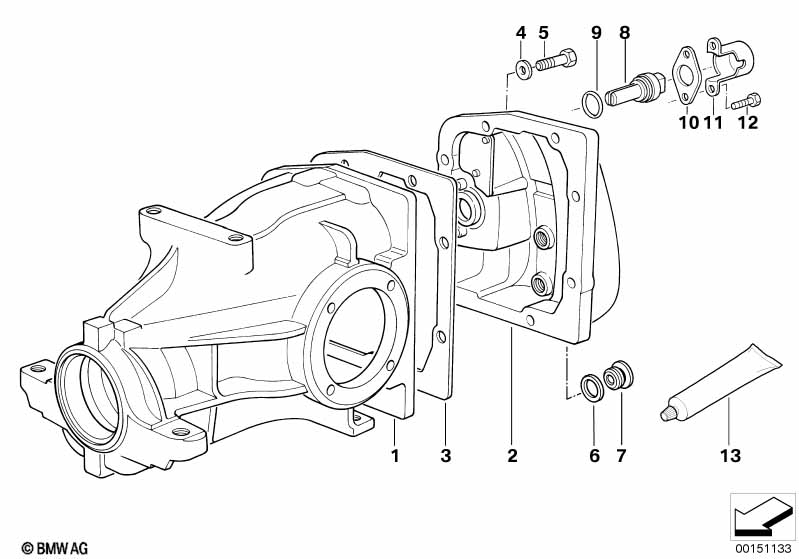

This Final drive cover/trigger contact technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Note Repair Manual | ||||||||||
| 02 | Transmission cover | 1 | 33111212337 | $134.97 | ENDED | Shop at ECS Tuning | ||||
| 03 | Gasket Asbestos Free | TYP 188 | 1 | 33111211708 | $1.84 | Shop at ECS Tuning | ||||
| 04 | Wave washer | B10-ZNS3 | 7 | 07119904463 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M10X25 8.8 | 8 | 07119908569 | Shop at ECS Tuning | |||||
| 06 | Gasket ring | A22X27-AL | 2 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Screw plug with O-ring | M22X1,5-ZNS3 | 2 | 33117525064 | $3.91 | Shop at ECS Tuning | ||||
| 08 | Pulse generator, speedometer | 1 | 62168355008 | $29.23 | Shop at ECS Tuning | |||||
| 09 | O-ring | 1 | 33111210739 | Shop at ECS Tuning | ||||||
| 10 | Bracket | 1 | 33111206076 | $2.65 | Shop at ECS Tuning | |||||
| 11 | Securing plate | 1 | 62161365817 | $15.34 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M6X10-8.8-ZNS3 | 2 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 13 | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
