Side shaft/wheel bearings for BMW 3 Series E21 320i (1979)

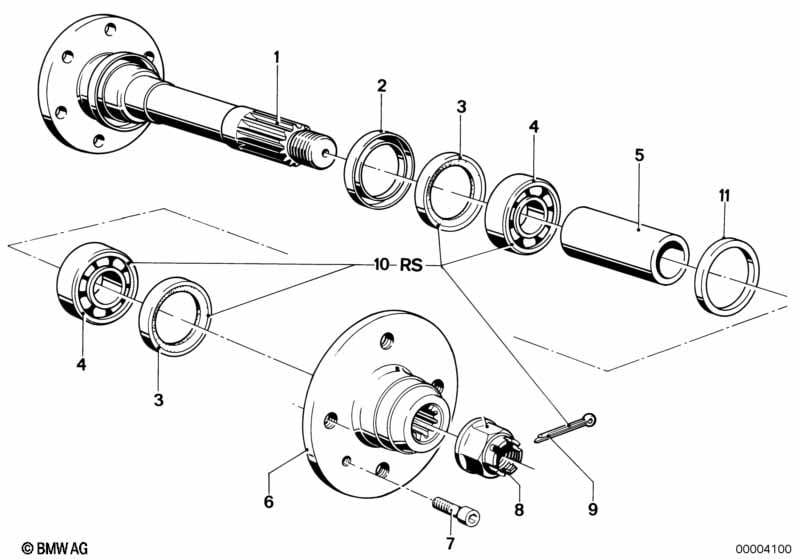

This Side shaft/wheel bearings technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side shaft | 2 | 09/1978 | 33411123868 | $94.27 | Shop at ECS Tuning | ||||
| 02 | Dustcover plate | 57MM | 2 | 33411115021 | $7.76 | ENDED | Shop at ECS Tuning | |||
| 03 | Shaft seal | 4 | 33411106214 | Shop at ECS Tuning | ||||||
| 04 | Grooved ball bearing | 28X58X16 | 4 | 10/1976 | 33411118431 | $11.38 | Shop at ECS Tuning | |||
| 05 | Spacer sleeve | 2 | 10/1976 | 33411118696 | $15.39 | Shop at ECS Tuning | ||||

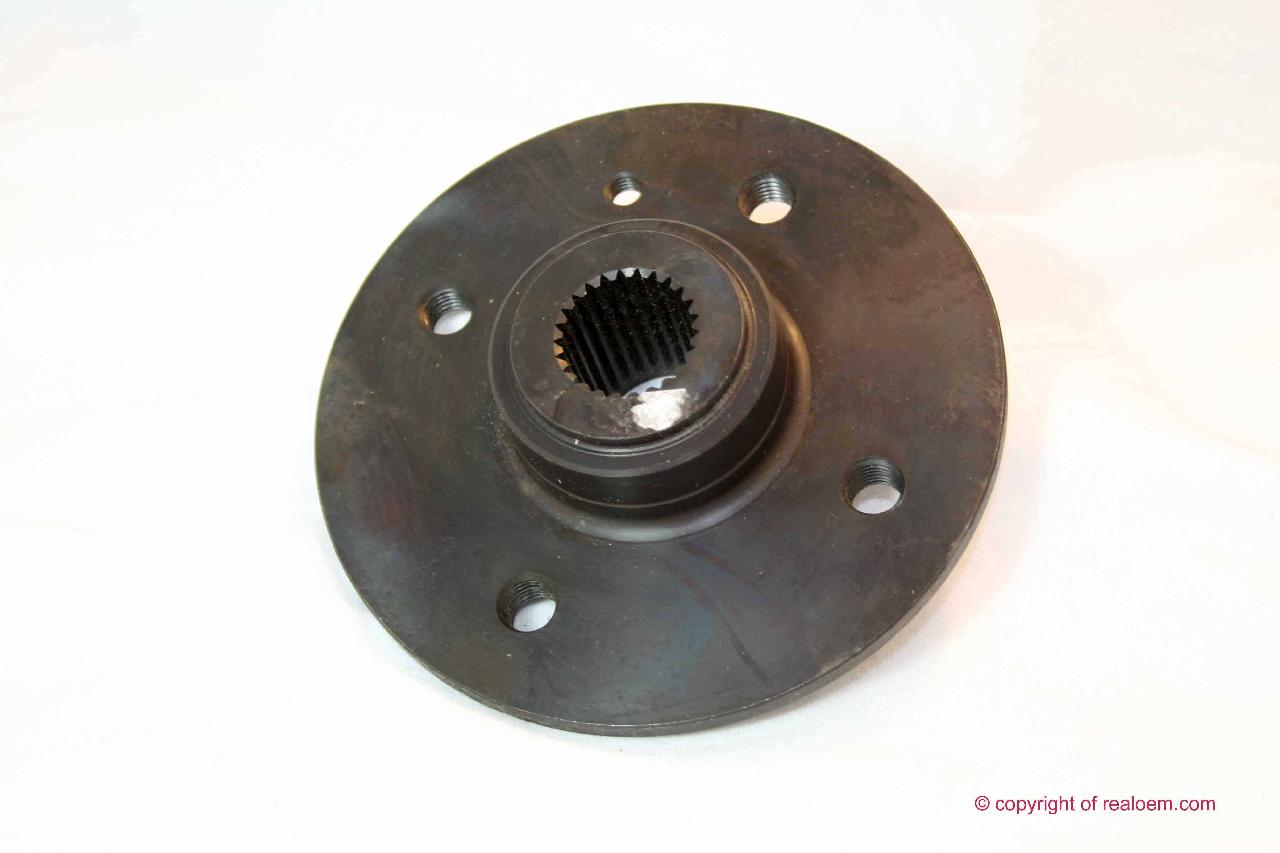

| 06 | Drive flange | 2 | 10/1976 | 33411123916 | $88.12 | Shop at ECS Tuning | ||||
| 07 | Fillister-head screw | M6 | 2 | 34111117461 | $1.16 | Shop at ECS Tuning | ||||
| 07 | Inner hex bolt | M8X12 | 2 | 34111123072 | $1.32 | Shop at ECS Tuning | ||||
| 08 | Crown nut | M24X1,5 | 2 | 33413404150 | $4.97 | ENDED | Shop at ECS Tuning | |||
| 09 | Split pin | 5X45 | 2 | 07119945270 | $0.40 | Shop at ECS Tuning | ||||
| 10 | Wheel bearing repair kit | 2 | 10/1976 | 33411108408 | $77.35 | Shop at ECS Tuning | ||||
| 11 | Shim | 2,550MM | 2 | 33411118726 | $3.23 | Shop at ECS Tuning | ||||
| 11 | Shim | 2,600MM | 2 | 33411118727 | $3.23 | ENDED | Shop at ECS Tuning | |||
| 11 | Shim | 2,650MM | 2 | 33411118728 | $3.23 | ENDED | Shop at ECS Tuning | |||
| 11 | Shim | 2,700MM | 2 | 33411118729 | $3.23 | ENDED | Shop at ECS Tuning | |||
| 11 | Shim | 2,750MM | 2 | 33411118730 | $3.23 | ENDED | Shop at ECS Tuning | |||
| 11 | Shim | 2,800MM | 2 | 33411118731 | $4.11 | ENDED | Shop at ECS Tuning | |||
| 11 | Shim | 2,850MM | 2 | 33411118732 | $3.23 | Shop at ECS Tuning | ||||
| 11 | Shim | 2,900MM | 2 | 33411118733 | $4.11 | ENDED | Shop at ECS Tuning | |||
| 11 | Shim | 2,950MM | 2 | 33411118734 | $3.23 | Shop at ECS Tuning | ||||
| 11 | Shim | 3,000MM | 2 | 33411118735 | $4.11 | Shop at ECS Tuning | ||||
| 11 | Shim | 3,050MM | 2 | 33411118736 | $3.23 | ENDED | Shop at ECS Tuning | |||
| 11 | Shim | 3,100MM | 2 | 33411118778 | $2.43 | ENDED | Shop at ECS Tuning | |||
| 11 | Shim | 3,150MM | 2 | 33411118869 | $3.23 | ENDED | Shop at ECS Tuning | |||
| 11 | Shim | 3,200MM | 2 | 33411118870 | $3.23 | ENDED | Shop at ECS Tuning | |||
| 11 | Shim | 3,250MM | 2 | 33411118871 | $2.99 | ENDED | Shop at ECS Tuning | |||
| 11 | Shim | 3,300MM | 2 | 33411118872 | $4.11 | ENDED | Shop at ECS Tuning | |||
| 11 | Shim | 3,350MM | 2 | 33411118873 | $3.23 | ENDED | Shop at ECS Tuning | |||
| 11 | Shim | 3,400MM | 2 | 33411118874 | $5.55 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
