Side shaft/wheel bearings for BMW 5 Series E12 528i (1979)

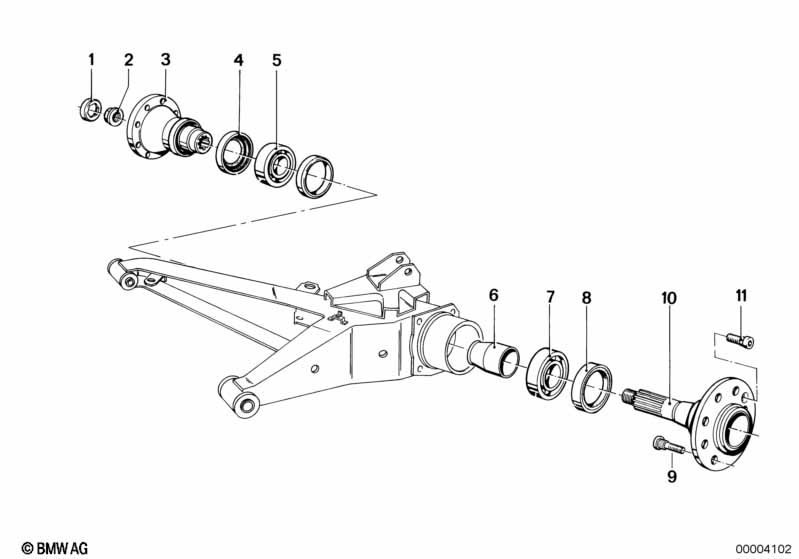

This Side shaft/wheel bearings technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Securing plate | 2 | 23211530104 | $7.60 | Shop at ECS Tuning | |||||
| 02 | Collar nut | M22X1,5 | 2 | 31521211089 | $5.07 | Shop at ECS Tuning | ||||
| 03 | Drive flange | 2 | 02/1976 | 33411117159 | $58.45 | Shop at ECS Tuning | ||||
| 04 | Shaft seal | 2 | 33411085077 | $17.54 | Shop at ECS Tuning | |||||
| 05 | Grooved ball bearing | 30X62X16 | 2 | 33411122131 | $28.44 | Shop at ECS Tuning | ||||
| 06 | Spacer sleeve | 2 | 33411114978 | $16.38 | ENDED | Shop at ECS Tuning | ||||
| 07 | Grooved ball bearing | 40X80X18 | 2 | 33411122130 | ENDED | Shop at ECS Tuning | ||||
| 08 | Shaft seal | 2 | 33411100599 | $19.50 | Shop at ECS Tuning | |||||
| 10 | Side shaft | 2 | 02/1976 | 33411123630 | $159.88 | ENDED | Shop at ECS Tuning | |||
| 11 | Inner hex bolt | M8X12 | 2 | 04/1977 | 34111123072 | $1.32 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528i Side shaft/wheel bearings?
- This technical diagram illustrates the Side shaft/wheel bearings within the Rear Axle group for the 5 Series E12 528i produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Securing plate (Part #23211530104).
- Which models use the hardware listed in this Side shaft/wheel bearings?
- The hardware and components featured in the Side shaft/wheel bearings are specific to the 5 Series E12 528i produced during 1979. These technical specifications ensure that parts like the Securing plate (23211530104) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Side shaft/wheel bearings assembly?
- Each item in the Side shaft/wheel bearings corresponds to the numbered list below the illustration. For the 5 Series E12 528i, you can identify the Securing plate by locating its position on the schematic, which then links to the official BMW part number 23211530104 for the Rear Axle section.
