Side shaft/wheel bearings for BMW 6 Series E24 633CSi (1982)

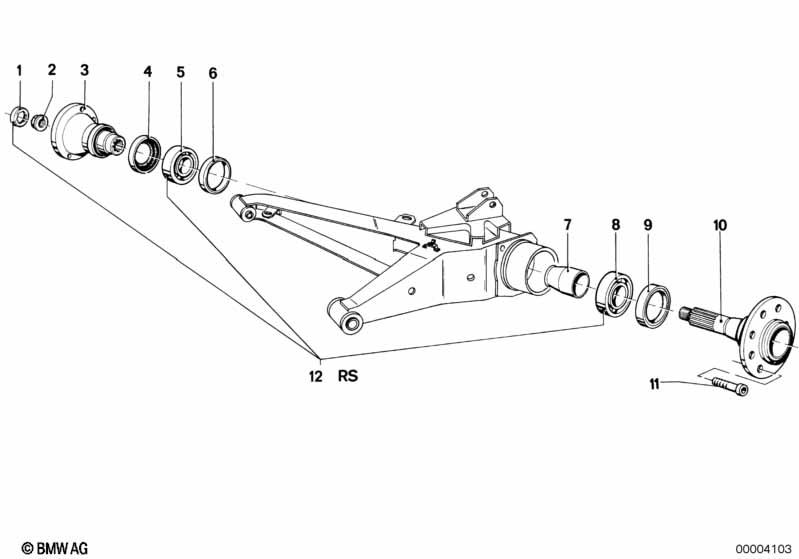

This Side shaft/wheel bearings technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Securing plate | 2 | 09/1982 | 23211530104 | $7.60 | Shop at ECS Tuning | ||||
| 02 | Collar nut | M22X1,5 | 2 | 09/1982 | 31521211089 | $5.07 | Shop at ECS Tuning | |||
| 03 | Drive flange | 2 | 09/1982 | 33411117159 | $58.45 | Shop at ECS Tuning | ||||
| 04 | Shaft seal | 2 | 09/1982 | 33411085077 | $17.54 | Shop at ECS Tuning | ||||
| 05 | Grooved ball bearing | 30X62X16 | 2 | 09/1982 | 33411122131 | $28.44 | Shop at ECS Tuning | |||
| 06 | Shim | 55X61,8X4,800MM | 2 | 09/1982 | 33411100601 | $1.97 | Shop at ECS Tuning | |||
| 06 | Shim | 55X61,8X4,900MM | 2 | 09/1982 | 33411100602 | $2.95 | ENDED | Shop at ECS Tuning | ||
| 06 | Shim | 55X61,8X5,000MM | 2 | 09/1982 | 33411100603 | $2.98 | ENDED | Shop at ECS Tuning | ||
| 06 | Shim | 55X61,8X5,100MM | 2 | 09/1982 | 33411100604 | $2.95 | ENDED | Shop at ECS Tuning | ||
| 06 | Shim | 55X61,8X5,200MM | 2 | 09/1982 | 33411100605 | $3.31 | ENDED | Shop at ECS Tuning | ||
| 06 | Shim | 55X61,8X4,850MM | 2 | 09/1982 | 33411105024 | $2.39 | Shop at ECS Tuning | |||
| 06 | Shim | 55X61,8X4,950MM | 2 | 09/1982 | 33411105025 | $2.00 | ENDED | Shop at ECS Tuning | ||
| 06 | Shim | 55X61,8X5,050MM | 2 | 09/1982 | 33411105026 | ENDED | Shop at ECS Tuning | |||
| 06 | Shim | 55X61,8X5,150MM | 2 | 09/1982 | 33411105027 | $2.79 | ENDED | Shop at ECS Tuning | ||
| 06 | Shim | 55X61,8X5,250MM | 2 | 09/1982 | 33411105028 | $1.97 | ENDED | Shop at ECS Tuning | ||
| 07 | Spacer sleeve | 2 | 09/1982 | 33411114978 | $16.38 | ENDED | Shop at ECS Tuning | |||
| 08 | Grooved ball bearing | 40X80X18 | 2 | 09/1982 | 33411122130 | ENDED | Shop at ECS Tuning | |||
| 09 | Shaft seal | 2 | 09/1982 | 33411100599 | $19.50 | Shop at ECS Tuning | ||||
| 10 | Side shaft | 2 | 09/1982 | 33411123710 | $128.57 | Shop at ECS Tuning | ||||
| 11 | Inner hex bolt | M8X12 | 2 | 09/1982 | 34111123072 | $1.32 | Shop at ECS Tuning | |||
| 12 | Wheel bearing repair kit | 30X62/40X80 | 2 | 09/1982 | 33411107512 | $87.27 | Shop at ECS Tuning |
