Side shaft/wheel bearings for BMW 5 Series E12 528i (1979)

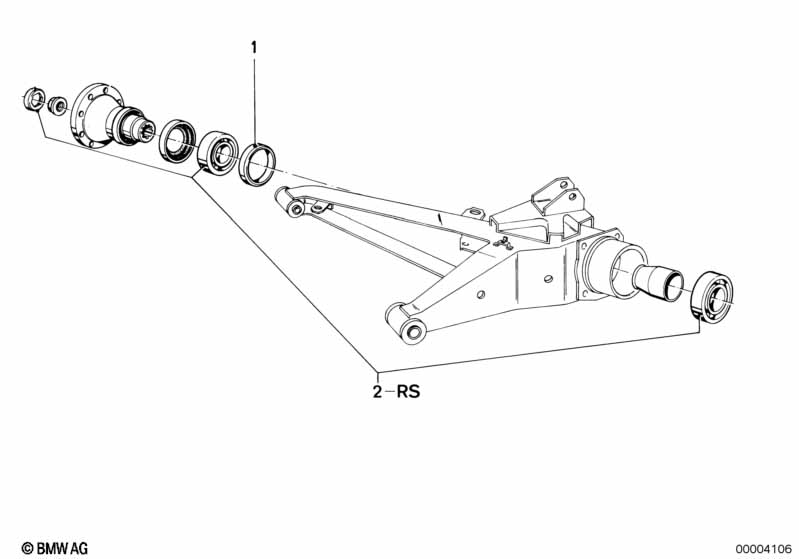

This Side shaft/wheel bearings technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shim | 55X61,8X4,800MM | 2 | 33411100601 | $1.97 | Shop at ECS Tuning | ||||
| 01 | Shim | 55X61,8X4,900MM | 2 | 33411100602 | $2.95 | ENDED | Shop at ECS Tuning | |||
| 01 | Shim | 55X61,8X5,000MM | 2 | 33411100603 | $2.98 | ENDED | Shop at ECS Tuning | |||
| 01 | Shim | 55X61,8X5,100MM | 2 | 33411100604 | $2.95 | ENDED | Shop at ECS Tuning | |||
| 01 | Shim | 55X61,8X5,200MM | 2 | 33411100605 | $3.31 | ENDED | Shop at ECS Tuning | |||
| 01 | Shim | 55X61,8X4,850MM | 2 | 33411105024 | $2.39 | Shop at ECS Tuning | ||||
| 01 | Shim | 55X61,8X4,950MM | 2 | 33411105025 | $2.00 | ENDED | Shop at ECS Tuning | |||
| 01 | Shim | 55X61,8X5,050MM | 2 | 33411105026 | ENDED | Shop at ECS Tuning | ||||
| 01 | Shim | 55X61,8X5,150MM | 2 | 33411105027 | $2.79 | ENDED | Shop at ECS Tuning | |||
| 01 | Shim | 55X61,8X5,250MM | 2 | 33411105028 | $1.97 | ENDED | Shop at ECS Tuning | |||
| 02 | Wheel bearing repair kit | 30X62/40X80 | 2 | 33411107512 | $87.27 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
