Rear axle carrier for BMW 3 Series E21 323i (1982)

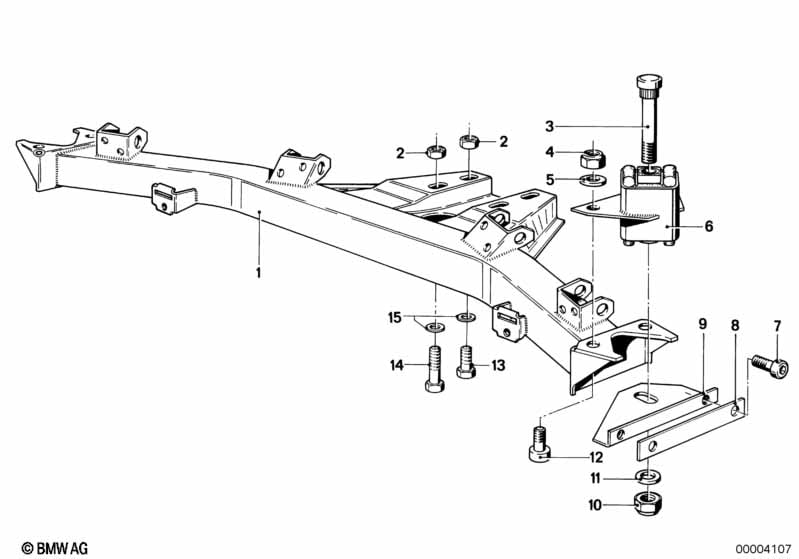

This Rear axle carrier technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear axle carrier | 1 | 33311121758 | $404.98 | Shop at ECS Tuning | |||||
| 02 | Self-locking hex nut | M12X1,5-10-PHR | 4 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Knurled bolt | M14X1,5X30 10.9 | 2 | 33323628167 | $7.58 | Shop at ECS Tuning | ||||
| 04 | Locknut | M10 | 4 | 33331119172 | $1.31 | Shop at ECS Tuning | ||||
| 05 | Washer | A10,5X22 | 4 | 31111114348 | $0.67 | Shop at ECS Tuning | ||||
| 06 | Rubber mounting hard left | 1 | 33331118568 | $65.00 | ENDED | Shop at ECS Tuning | ||||
| 06 | Rubber mounting soft left | 1 | 33331118569 | $65.00 | Shop at ECS Tuning | |||||
| 06 | Rubber mounting hard right | 1 | 33331118928 | $65.00 | Shop at ECS Tuning | |||||
| 06 | Rubber mounting soft right | 1 | 33331118929 | $74.11 | Shop at ECS Tuning | |||||
| 07 | Inner hex bolt | M8X22 | 4 | 33311129676 | $1.44 | ENDED | Shop at ECS Tuning | |||
| 08 | Reinforcement | 2 | 33321116189 | $3.24 | Shop at ECS Tuning | |||||
| 09 | Bracket left | 1 | 33321115960 | $12.95 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bracket right | 1 | 33321115961 | $12.95 | ENDED | Shop at ECS Tuning | ||||
| 10 | Self-locking hex nut | M14X1,5 | 2 | 07129922745 | $1.04 | Shop at ECS Tuning | ||||
| 11 | Washer | 2 | 33331117787 | $0.45 | Shop at ECS Tuning | |||||
| 12 | Securing bolt | M10X22 12.9 | 4 | 33331119171 | $1.23 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M12X1,5X45 10.9 | 2 | 07119913718 | ENDED | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M12X1,5X85 | 2 | 07119914681 | $2.09 | Shop at ECS Tuning | ||||
| 15 | Washer | A12.5X30X3MM | 4 | 33331120662 | $0.35 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 323i Rear axle carrier?
- This technical diagram illustrates the Rear axle carrier within the Rear Axle group for the 3 Series E21 323i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Rear axle carrier (Part #33311121758).
- Which models use the hardware listed in this Rear axle carrier?
- The hardware and components featured in the Rear axle carrier are specific to the 3 Series E21 323i produced during 1982. These technical specifications ensure that parts like the Rear axle carrier (33311121758) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear axle carrier assembly?
- Each item in the Rear axle carrier corresponds to the numbered list below the illustration. For the 3 Series E21 323i, you can identify the Rear axle carrier by locating its position on the schematic, which then links to the official BMW part number 33311121758 for the Rear Axle section.
