Rear axle carrier for BMW 7 Series E23 730 (1979)

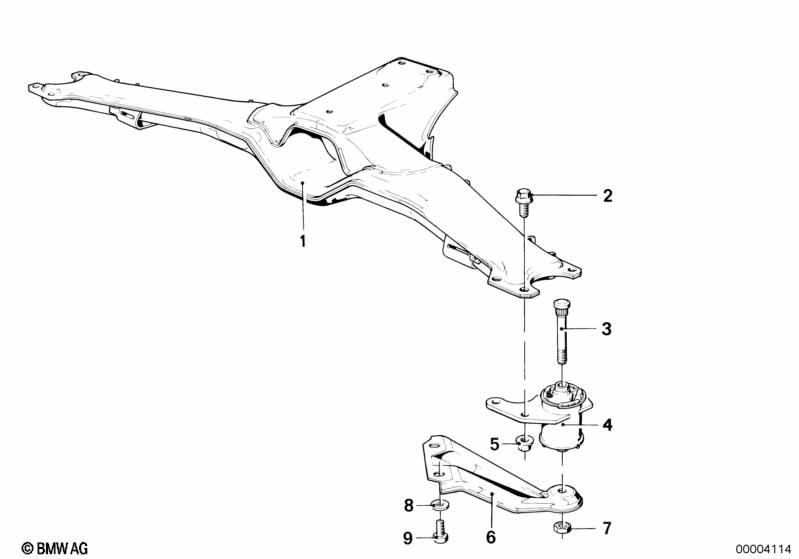

This Rear axle carrier technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 730. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear axle carrier | 1 | 09/1981 | 33311133926 | $451.98 | ENDED | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH SERVICE INFORM. | ||||||||||
| 02 | Securing bolt | M10X22 12.9 | 6 | 09/1981 | 33331119171 | $1.23 | Shop at ECS Tuning | |||
| 03 | Knurled bolt | M14X1,5X30 10.9 | 2 | 09/1981 | 33323628167 | $7.58 | Shop at ECS Tuning | |||
| 04 | Rubber mounting hard left | 1 | 09/1981 | 33331119206 | $139.00 | Shop at ECS Tuning | ||||
| 04 | Rubber mounting soft left | 1 | 09/1981 | 33331119207 | ENDED | Shop at ECS Tuning | ||||
| 04 | Rubber mounting right | 1 | 09/1981 | 33331119208 | $139.00 | Shop at ECS Tuning | ||||
| 05 | Locknut | M10 | 6 | 09/1981 | 33331119172 | $1.31 | Shop at ECS Tuning | |||
| 06 | Push rod | 2 | 09/1981 | 33311123985 | ENDED | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M14X1,5 | 2 | 09/1981 | 07129922745 | $1.04 | Shop at ECS Tuning | |||
| 08 | Washer | A8,4X25 | 4 | 09/1981 | 07147201571 | $0.20 | Shop at ECS Tuning | |||
| 09 | Hex bolt | M8X18-8.8-ZNS3 | 4 | 09/1981 | 07119904146 | $0.65 | Shop at ECS Tuning | |||
