Rear axle support/wheel suspension for BMW 6 Series E24 628CSi (1987)

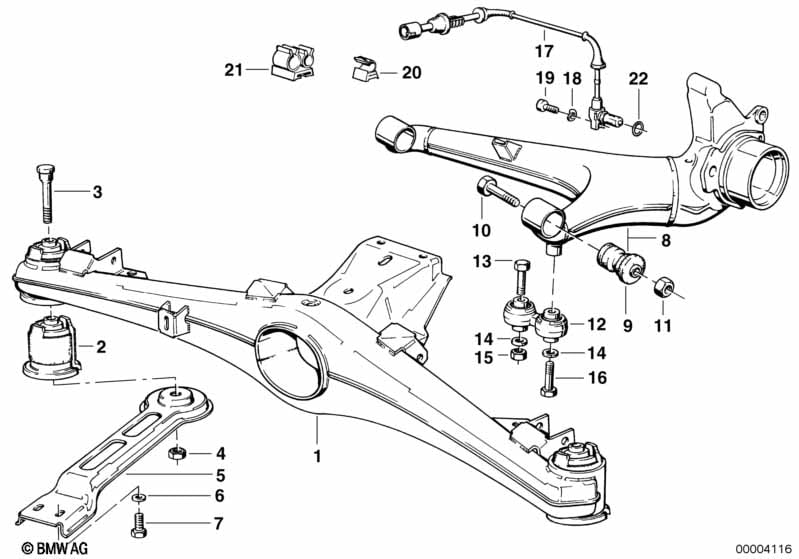

This Rear axle support/wheel suspension technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear axle carrier | 1 | 05/1982 | 33311126011 | $1154.31 | Shop at ECS Tuning | ||||
| 02 | Rubber Mounting | 2 | 05/1982 | 33311130487 | Shop at ECS Tuning | |||||
| 03 | Knurled bolt | M14X1,5X30 10.9 | 2 | 05/1982 | 33323628167 | $7.58 | Shop at ECS Tuning | |||
| 04 | Self-locking hex nut | M14X1,5 | 2 | 05/1982 | 07129922745 | $1.04 | Shop at ECS Tuning | |||
| 05 | Push rod | 2 | 05/1982 | 33311123982 | $11.39 | Shop at ECS Tuning | ||||
| 06 | Washer | A8,4X25 | 4 | 05/1982 | 07147201571 | $0.20 | Shop at ECS Tuning | |||
| 07 | Hex bolt | M8X18-8.8-ZNS3 | 4 | 05/1982 | 07119904146 | $0.65 | Shop at ECS Tuning | |||
| For vehicles with Anti block system (ABS) |
=Yes |
|||||||||
| 08 | Trailing arm, left | 1 | 09/1986 | 33321133393 | $1192.70 | Shop at ECS Tuning | ||||
| 08 | Trailing arm, right | 1 | 09/1986 | 33321133394 | $1192.70 | Shop at ECS Tuning | ||||
| 09 | Set rubber mounting eccentric | D=44MM | 2 | 05/1982 | 33329058824 | $76.91 | ENDED | Shop at ECS Tuning | ||
| 09 | Set rubber mounting | D=44MM | 2 | 05/1982 | 33329061946 | $76.91 | ENDED | Shop at ECS Tuning | ||
| 10 | Hex bolt | M12X1.5X90 | 4 | 05/1982 | 07119914667 | $1.78 | Shop at ECS Tuning | |||
| 11 | Self-locking hex nut | M12X1,5-10-PHR | 4 | 05/1982 | 07129900047 | $0.62 | Shop at ECS Tuning | |||
| 12 | Pitman arm | 2 | 05/1982 | 33321125665 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M14X1,5X95 | 2 | 05/1982 | 07119914848 | $2.89 | Shop at ECS Tuning | |||
| 14 | Washer | A15 ZNS3 | 4 | 05/1982 | 07119905829 | $0.74 | Shop at ECS Tuning | |||
| 15 | Self-locking hex nut | M14X1,5 | 2 | 05/1982 | 07129922745 | $1.04 | Shop at ECS Tuning | |||
| 16 | Hex bolt | M14X1,5X60 | 2 | 05/1982 | 07119914816 | $2.89 | Shop at ECS Tuning | |||
| 17 | Pulse generator, left | 1 | 09/1986 | 34521155709 | $166.98 | Shop at ECS Tuning | ||||
| 17 | Pulse generator right | 1 | 09/1986 | 34521155710 | $166.98 | Shop at ECS Tuning | ||||
| 18 | Spring washer Black | B6-ZN | 2 | 05/1982 | 04/1989 | 07119932073 | $0.38 | Shop at ECS Tuning | ||
| 18 | Washer | 5.3-140 HV-ZNS | 2 | 05/1982 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 19 | ISA screw | M6X12-8.8-ZNNIV | 2 | 05/1982 | 07129905867 | Shop at ECS Tuning | ||||
| 20 | Cable holder | 5 | 05/1982 | 61131369469 | $1.13 | ENDED | Shop at ECS Tuning | |||
| 20 | Cable clamp | D=6MM | 5 | 05/1982 | 63121364431 | $0.93 | Shop at ECS Tuning | |||
| 21 | Cable holder | 2 | 09/1986 | 34521179169 | $0.50 | Shop at ECS Tuning | ||||
| 22 | O-ring | 12,42X1,78 FKM | 2 | 05/1982 | 11007776604 | Shop at ECS Tuning | ||||
