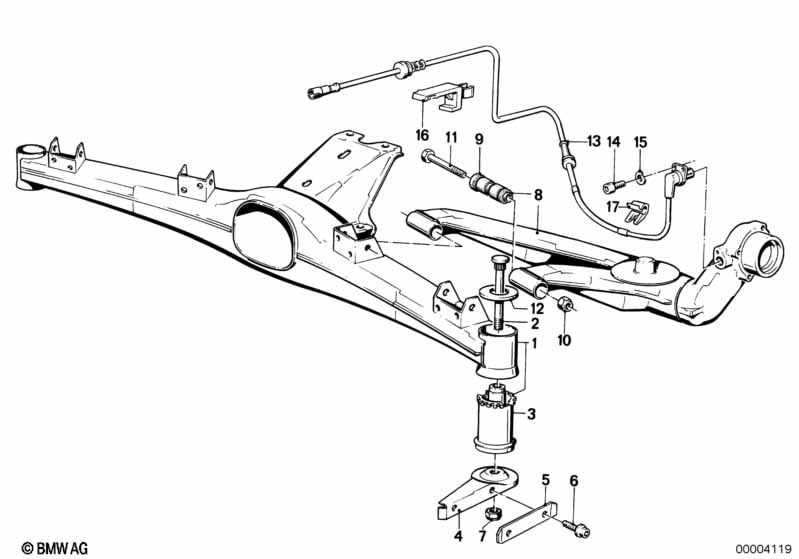

Rear axle support/wheel suspension for BMW 3 Series E30 325e (1987)
This Rear axle support/wheel suspension technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear axle carrier | 1 | 33311135456 | $1250.51 | Shop at ECS Tuning | |||||
| 02 | Knurled bolt | M14X170,6 | 2 | 51718181460 | $6.63 | Shop at ECS Tuning | ||||
| 03 | Rubber Mounting | 2 | 33311130537 | Shop at ECS Tuning | ||||||
| 04 | Push rod left | 1 | 33321124465 | $41.35 | Shop at ECS Tuning | |||||
| 04 | Push rod right | 1 | 33321124466 | $41.35 | Shop at ECS Tuning | |||||
| 05 | Reinforcement | 2 | 33321128417 | $1.43 | Shop at ECS Tuning | |||||
| 06 | Inner hex bolt | M8X22 | 4 | 33311129676 | $1.44 | ENDED | Shop at ECS Tuning | |||
| 07 | Collar nut | M14X1,5 | 2 | 33331126136 | $1.93 | Shop at ECS Tuning | ||||
| 08 | Trailing arm, left | D=91MM | 1 | 09/1985 | 33321137641 | $1058.14 | Shop at ECS Tuning | |||
| 08 | Trailing arm, right | D=91MM | 1 | 09/1985 | 33321137642 | $1058.14 | Shop at ECS Tuning | |||
| For vehicles with Anti block system (ABS) |
=Yes |
|||||||||
| 08 | Trailing arm, left | D=91MM | 1 | 09/1985 | 33321137641 | $1058.14 | Shop at ECS Tuning | |||
| 08 | Trailing arm, right | D=91MM | 1 | 09/1985 | 33321137642 | $1058.14 | Shop at ECS Tuning | |||
| 09 | Set rubber mounting eccentric | D=30MM | 2 | 33329058822 | $33.38 | Shop at ECS Tuning | ||||
| 09 | Set rubber mounting | D=30MM | 2 | 33329061945 | $26.77 | Shop at ECS Tuning | ||||
| 10 | Self-locking hex nut | M12X1,5-10-PHR | 4 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M12X1,5X90 | 4 | 33321136406 | $10.69 | Shop at ECS Tuning | ||||
| 12 | Stopper | 62MM | 2 | 33331127496 | $9.65 | Shop at ECS Tuning | ||||
| 13 | Pulse generator | 2 | 34521155041 | $148.66 | Shop at ECS Tuning | |||||
| 14 | ISA screw | M6X12-8.8-ZNNIV | 2 | 07129905867 | Shop at ECS Tuning | |||||
| 15 | Spring washer Black | B6-ZN | 2 | 08/1990 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 15 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 16 | Holder | 2 | 34521154232 | $4.29 | Shop at ECS Tuning | |||||
| 17 | Cable clamp | D=6MM | 4 | 63121364431 | $0.93 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
