Coil spring/guide support/attach.parts for BMW 3 Series E21 316 (1982)

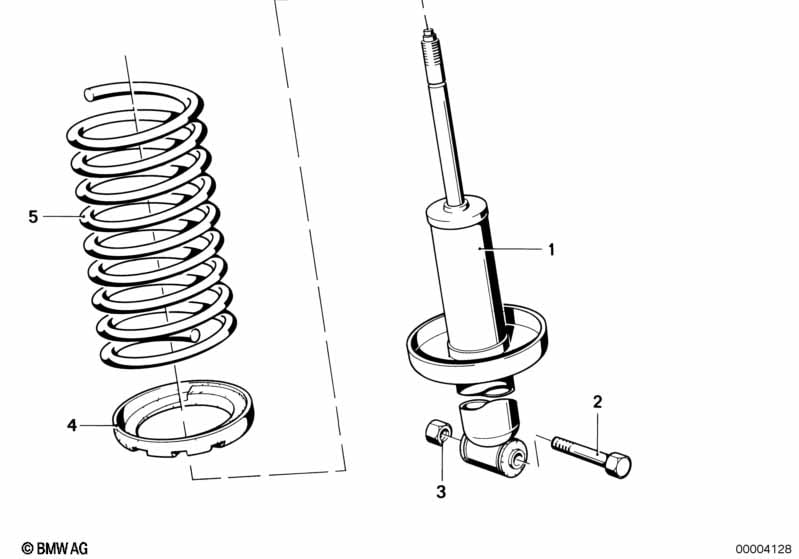

This Coil spring/guide support/attach.parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shock absorber, rear | BILSTEIN | 2 | 33521123547 | $253.29 | Shop at ECS Tuning | ||||
| 01 | Shock absorber, rear | BOGE | 2 | 03/1979 | 33521123855 | $135.09 | Shop at ECS Tuning | |||
| For vehicles with Sport suspension |
=Yes |
|||||||||
| 01 | Shock absorber, rear | MOTORSPORT | 2 | 33522205732 | $343.73 | Shop at ECS Tuning | ||||
| For vehicles with Hot-climate version ONLY APPLIES TO SHOCK ABSORB.(TROPICAL) |
S823A=Yes |
|||||||||
| 01 | Shock absorber, rear | 2 | 09/1981 | 33521126838 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M10X65 | 2 | 07119912666 | $1.18 | Shop at ECS Tuning | ||||
| 03 | Self-locking hex nut | M10-10 ZNS3 | 2 | 33326768900 | $0.78 | Shop at ECS Tuning | ||||
| 04 | Damper ring | 20MM | 2 | 33521114966 | $14.18 | Shop at ECS Tuning | ||||
| 05 | Coil spring | MOTORSPORT | 2 | 33539055855 | $112.57 | Shop at ECS Tuning | ||||
| 05 | Rear coil spring | 2 | 08/1976 | 33531118816 | $118.50 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 316 Coil spring/guide support/attach.parts?
- This technical diagram illustrates the Coil spring/guide support/attach.parts within the Rear Axle group for the 3 Series E21 316 produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Shock absorber, rear (Part #33521123547).
- Which models use the hardware listed in this Coil spring/guide support/attach.parts?
- The hardware and components featured in the Coil spring/guide support/attach.parts are specific to the 3 Series E21 316 produced during 1982. These technical specifications ensure that parts like the Shock absorber, rear (33521123547) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Coil spring/guide support/attach.parts assembly?
- Each item in the Coil spring/guide support/attach.parts corresponds to the numbered list below the illustration. For the 3 Series E21 316, you can identify the Shock absorber, rear by locating its position on the schematic, which then links to the official BMW part number 33521123547 for the Rear Axle section.
