Single components for rear spring strut for BMW 7 Series E23 745i (1987)

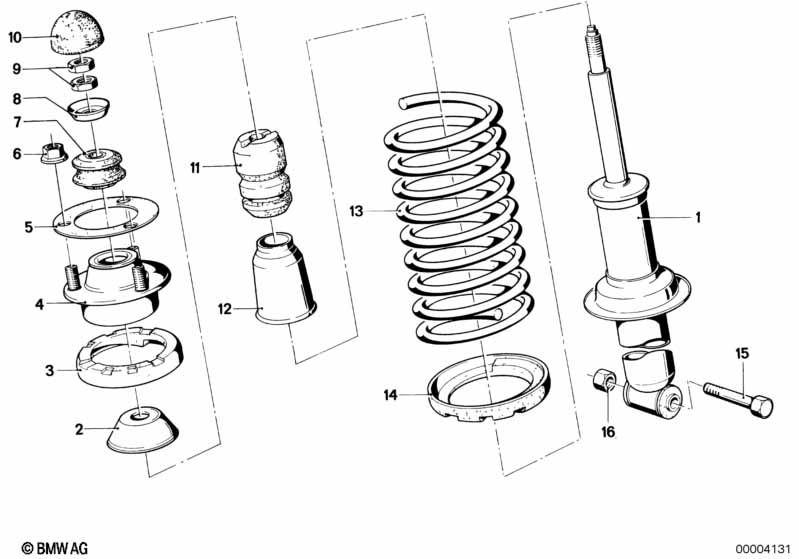

This Single components for rear spring strut technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shock absorber, rear | 2 | 33523905398 | Shop at ECS Tuning | ||||||
| 01 | Shock absorber, rear | 2 | 37121124743 | $335.92 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO BILSTEIN | ||||||||||
| 01 | Shock absorber, rear | 2 | 04/1983 | 33521128266 | ENDED | Shop at ECS Tuning | ||||
| 02 | Supporting Cup | 2 | 33521136063 | $3.59 | Shop at ECS Tuning | |||||
| 03 | Spring pad | 2 | 33521117995 | $17.47 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO COIL SPRING RED | ||||||||||
| 03 | Spring pad | 2 | 33521117996 | ENDED | Shop at ECS Tuning | |||||
| 04 | Guide support | 2 | 33521117997 | $25.56 | ENDED | Shop at ECS Tuning | ||||
| 05 | Gasket | 2 | 33521117869 | $0.77 | Shop at ECS Tuning | |||||
| 06 | Self-locking collar nut | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| 07 | Rubber Mounting | 2 | 33521117676 | $11.41 | Shop at ECS Tuning | |||||
| 08 | Plate | 2 | 33523901479 | Shop at ECS Tuning | ||||||
| 09 | Self-locking hex nut | M10X1 | 4 | 07129922436 | $0.54 | Shop at ECS Tuning | ||||
| 10 | Protection cap | 2 | 33521119067 | $2.10 | Shop at ECS Tuning | |||||
| 11 | Absorber | 2 | 01/1982 | 33521124104 | $17.93 | ENDED | Shop at ECS Tuning | |||
| 12 | Protection tube | 2 | 31333905603 | Shop at ECS Tuning | ||||||
| 13 | Coil spring | 2 | 33533901996 | Shop at ECS Tuning | ||||||
| 13 | Coil spring | 2 | 33533906659 | Shop at ECS Tuning | ||||||
| 14 | Spring pad | 2 | 33521117995 | $17.47 | Shop at ECS Tuning | |||||
| 15 | Hex bolt | M14X1,5X70 | 2 | 07119914832 | $2.60 | Shop at ECS Tuning | ||||
| 16 | Self-locking hex nut | M14X1,5 | 2 | 07129922745 | $1.04 | Shop at ECS Tuning | ||||
