Guide support/spring pad/attaching parts for BMW 6 Series E24 633CSi (1979)

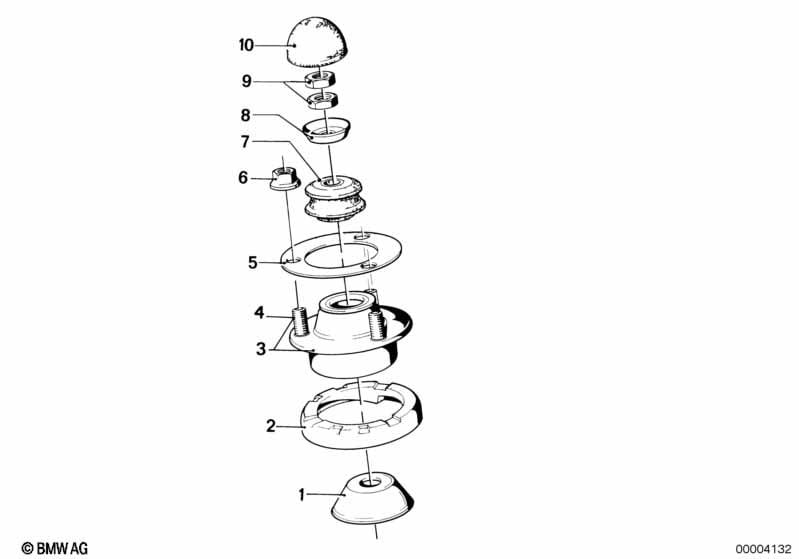

This Guide support/spring pad/attaching parts technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting Cup | 2 | 09/1982 | 33521136063 | $3.59 | Shop at ECS Tuning | ||||
| 02 | Spring pad | 2 | 09/1982 | 33521117504 | $4.09 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO COIL SPRING RED | ||||||||||
| 02 | Spring pad | +5 MM | 2 | 09/1982 | 33521117671 | $4.09 | Shop at ECS Tuning | |||
| 03 | Guide support | 2 | 09/1982 | 33521118459 | $28.68 | ENDED | Shop at ECS Tuning | |||
| 04 | Pin | M8X18 ZNS3 | 6 | 09/1982 | 31336765744 | $1.17 | Shop at ECS Tuning | |||
| 05 | Washer-gasket | 2 | 09/1982 | 33521118480 | $3.77 | Shop at ECS Tuning | ||||
| 06 | Self-locking collar nut | M8-8-ZNS3 | 6 | 09/1982 | 07119904295 | $0.36 | Shop at ECS Tuning | |||
| 06 | Self-locking collar nut | M8-10 ZNS3 | 6 | 09/1982 | 07119905374 | Shop at ECS Tuning | ||||
| 07 | Rubber Mounting | 2 | 09/1982 | 33521117676 | $11.41 | Shop at ECS Tuning | ||||

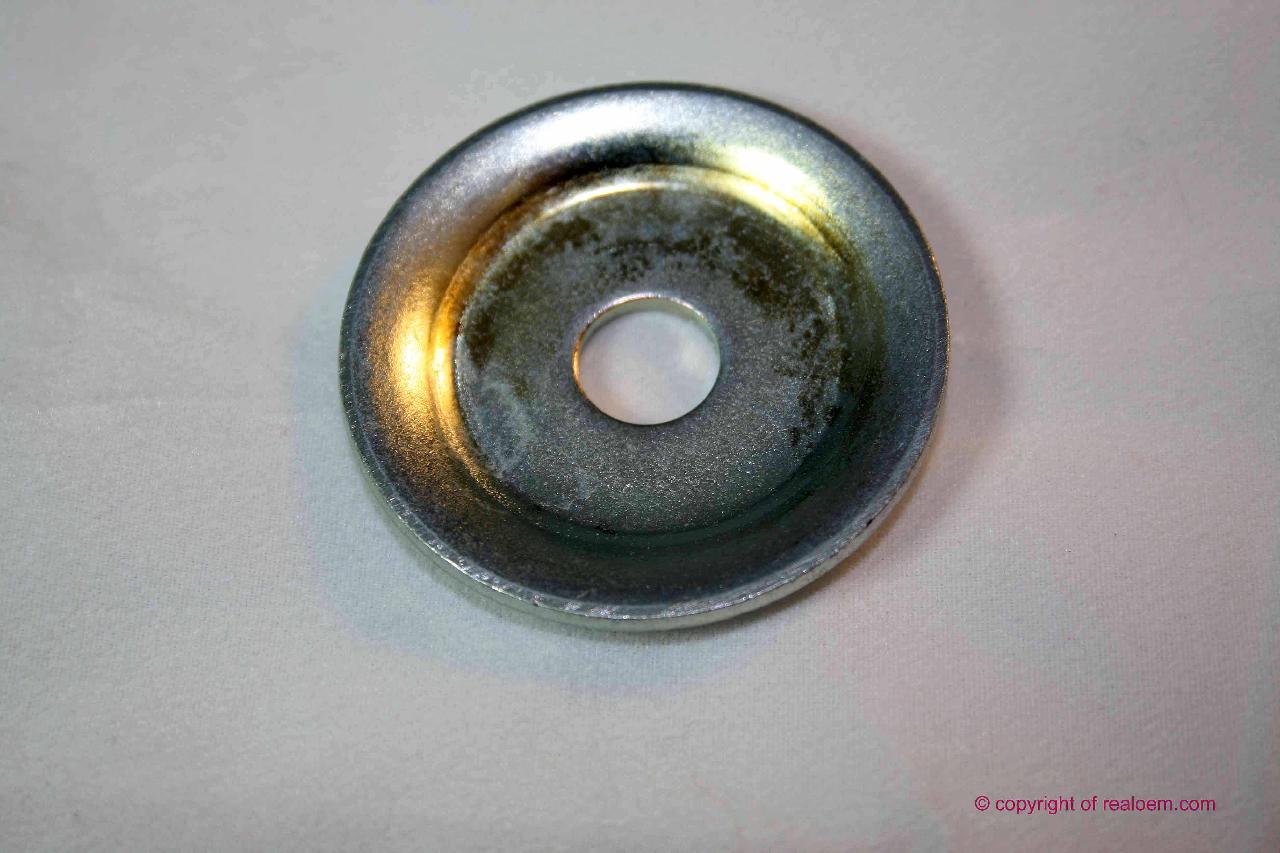

| 08 | Support | 44MM | 2 | 09/1982 | 33521117677 | $1.72 | Shop at ECS Tuning | |||
| 09 | Self-locking hex nut | M10X1 | 4 | 09/1982 | 07129922436 | $0.54 | Shop at ECS Tuning | |||
| 10 | Protection cap | 2 | 09/1982 | 33521119067 | $2.10 | Shop at ECS Tuning | ||||
