Single components for rear spring strut for BMW 5 Series E28 528e (1987)
This Single components for rear spring strut technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shock absorber, rear | BILSTEIN | 2 | 33521129241 | $274.83 | Shop at ECS Tuning | ||||
| 01 | Shock absorber, rear | 2 | 09/1982 | 33521125802 | $274.83 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO SHOCK ABSORB.(TROPICAL) | ||||||||||
| 01 | Shock absorber, rear | 2 | 09/1982 | 33521125802 | $274.83 | Shop at ECS Tuning | ||||
| For vehicles with Sport suspension |
=Yes |
|||||||||
| 01 | Shock absorber, rear | 2 | 09/1982 | 33521125802 | $274.83 | Shop at ECS Tuning | ||||
| 02 | Supporting Cup | 62MM | 2 | 33521125649 | $1.29 | Shop at ECS Tuning | ||||

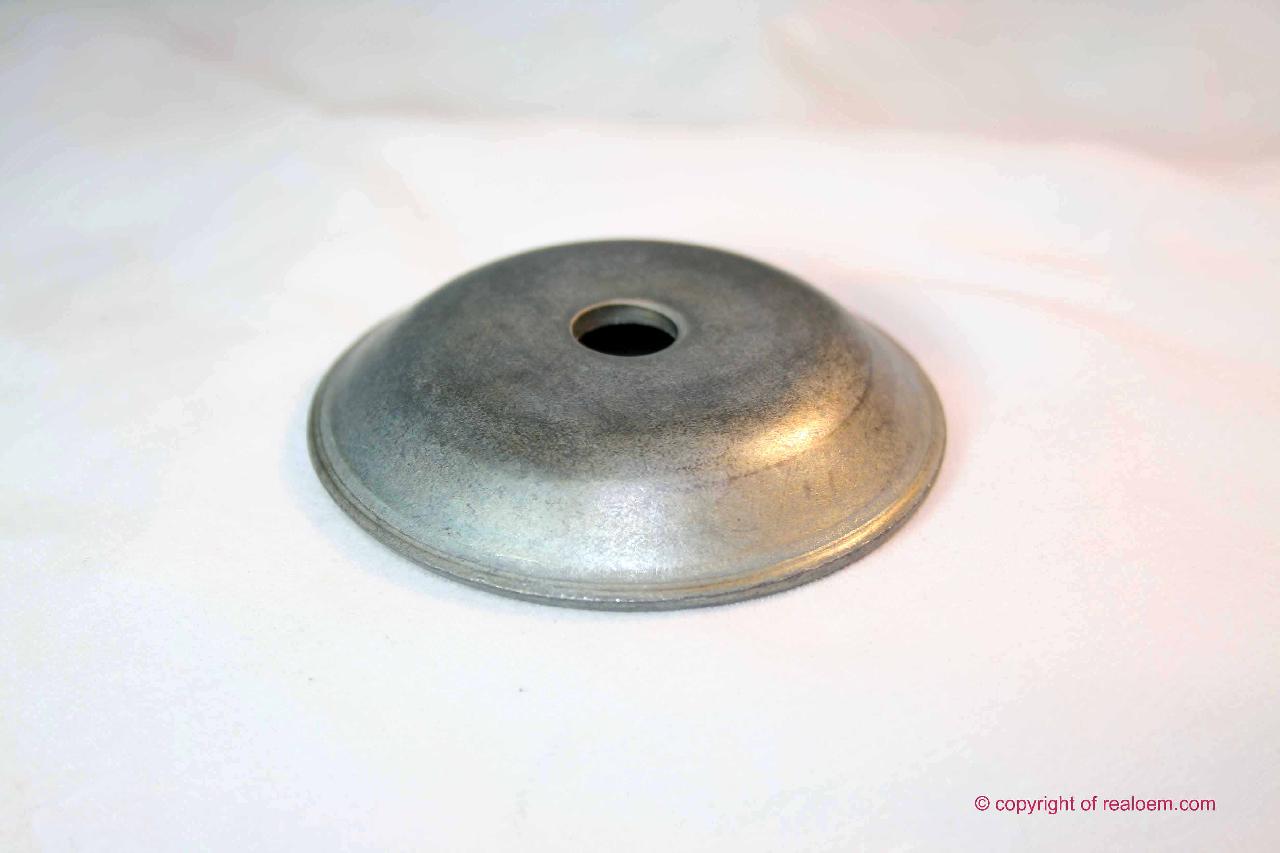

| 02 | Plate | 2 | 33526762325 | $3.93 | Shop at ECS Tuning | |||||
| 03 | Spring pad | 2 | 33521124507 | $3.38 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO COIL SPRING RED | ||||||||||
| 03 | Spring pad | 2 | 33521124591 | $3.38 | Shop at ECS Tuning | |||||
| 04 | Guide support | 2 | 33521126680 | $33.08 | Shop at ECS Tuning | |||||
| 05 | Washer-gasket | 2 | 33521118480 | $3.77 | Shop at ECS Tuning | |||||
| 06 | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 07 | Rubber Mounting | 2 | 33521117676 | $11.41 | Shop at ECS Tuning | |||||
| 08 | Universal joint | 2 | 33521125651 | $5.71 | Shop at ECS Tuning | |||||
| 09 | Self-locking hex nut | M10X1 | 2 | 07129922436 | $0.54 | Shop at ECS Tuning | ||||
| 10 | Protection cap | 2 | 33521119067 | $2.10 | Shop at ECS Tuning | |||||
| 11 | Absorber | 2 | 33521124573 | $17.34 | Shop at ECS Tuning | |||||
| 12 | Protection tube | 2 | 33521124575 | $5.38 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO SHOCK ABSORB.(TROPICAL) | ||||||||||
| 12 | Rubber boot | 2 | 33521127060 | $66.40 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO BILSTEIN | ||||||||||
| 13 | Coil spring | 2 | 33531128062 | Shop at ECS Tuning | ||||||
| 14 | Spring pad | 2 | 33521124572 | $6.80 | Shop at ECS Tuning | |||||
| 15 | Hex bolt | M14X1,5X85 | 2 | 07119914829 | $5.82 | Shop at ECS Tuning | ||||
| 16 | Washer | 2 | 33521125260 | $1.65 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 528e Single components for rear spring strut?

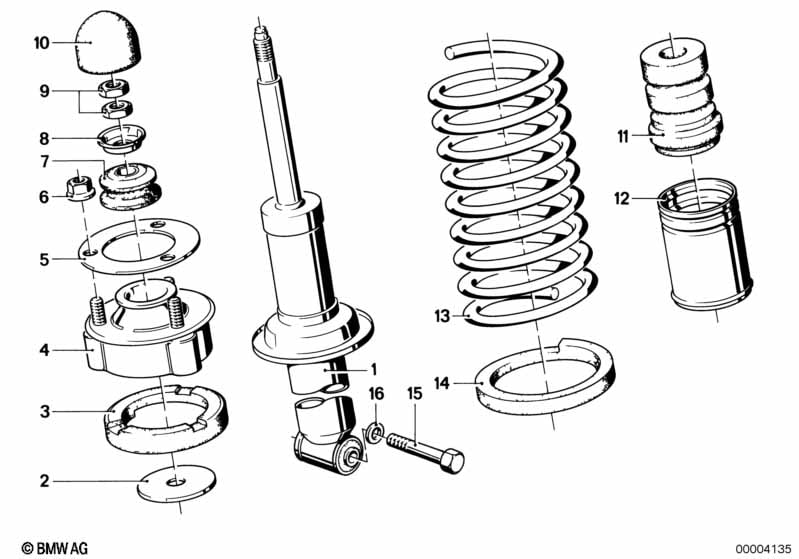

- This technical diagram illustrates the Single components for rear spring strut within the Rear Axle group for the 5 Series E28 528e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Shock absorber, rear (Part #33521129241).
